D045 SUN ROOF COUPLING

Powered sunroof

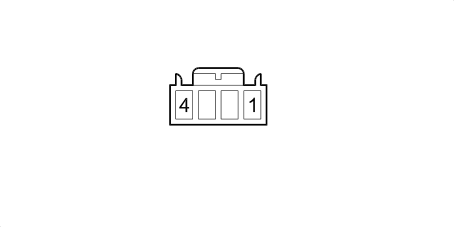

Wiring	Colour
See 71 SUN ROOF BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	N		See N035 SUN ROOF MOTOR	10
2		V		See N035 SUN ROOF MOTOR	8
3		A		See N035 SUN ROOF MOTOR	9
4	1.5	R		See N035 SUN ROOF MOTOR	7

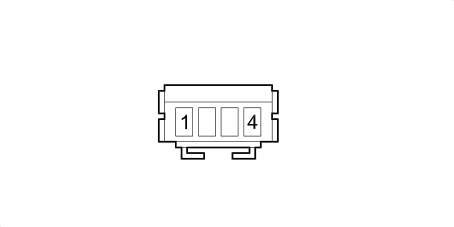

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	N		See C030 LEFT REAR EARTH	10
2		RV		See M001D BODY COMPUTER (REAR)	10
3		LG		See D006 FRONT/REAR COUPLING	2
4	1.5	R		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	3
