D040 rear/boot coupling

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Intermediate couplings › D040 rear/boot coupling

Connectors and pin-outsD040 rear/boot coupling

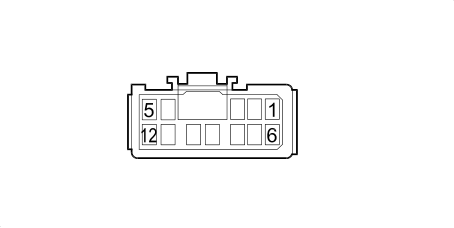

D040 REAR/BOOT COUPLING

Wiring	Colour
See 28 BOOT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	RN		See N057 BOOT LOCK GEARED MOTOR	1
2		HR		See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
3		GV		See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	2
4	1	S		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
5		GN		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	2
8	1.5	N	X	See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	3
				See N057 BOOT LOCK GEARED MOTOR	2
				See N057 BOOT LOCK GEARED MOTOR	3
				See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	3
9		LN		See N057 BOOT LOCK GEARED MOTOR	4
12		G		See N057 BOOT LOCK GEARED MOTOR	5

Right hand drive

Wiring	Colour
See 28 BOOT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	RN		See N057 BOOT LOCK GEARED MOTOR	1
2		HR		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
3		GV		See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	2
4	1	S		See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
5		GN		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	2
8	1.5	N	X	See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	3
				See N057 BOOT LOCK GEARED MOTOR	2
				See N057 BOOT LOCK GEARED MOTOR	3
				See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	3
9		LN		See N057 BOOT LOCK GEARED MOTOR	4
12		G		See N057 BOOT LOCK GEARED MOTOR	5

All versions

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	RN		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	18
2		HR		See M001E BODY COMPUTER (REAR)	31
3		GV	X	See M001D BODY COMPUTER (REAR)	5
				See F030 LEFT REAR LIGHT CLUSTER	3
4	1	S		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	7
5		GN	X	See M001D BODY COMPUTER (REAR)	6
				See F031 RIGHT REAR LIGHT CLUSTER	3
8	1.5	N		See C030 LEFT REAR EARTH	4
9		LN	X	See M001E BODY COMPUTER (REAR)	36
				See G040 BOOT COURTESY LIGHT	3
12		G		See M001E BODY COMPUTER (REAR)	24
