P052 rear current socket
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Various consumers › P052 rear current socket
Connectors and pin-outsP052 rear current socket

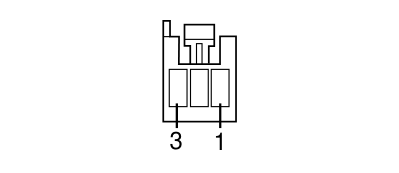

P052 REAR CURRENT SOCKET
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | 1.5 | GR | See B045A LUGGAGE COMPARTMENT JUNCTION UNIT (CVB) (REAR) | 11 | |
| 3 | 1.5 | N | See C015 DASHBOARD EARTH, DRIVER'S SIDE | 5 | |
