D60 Air Bag connection

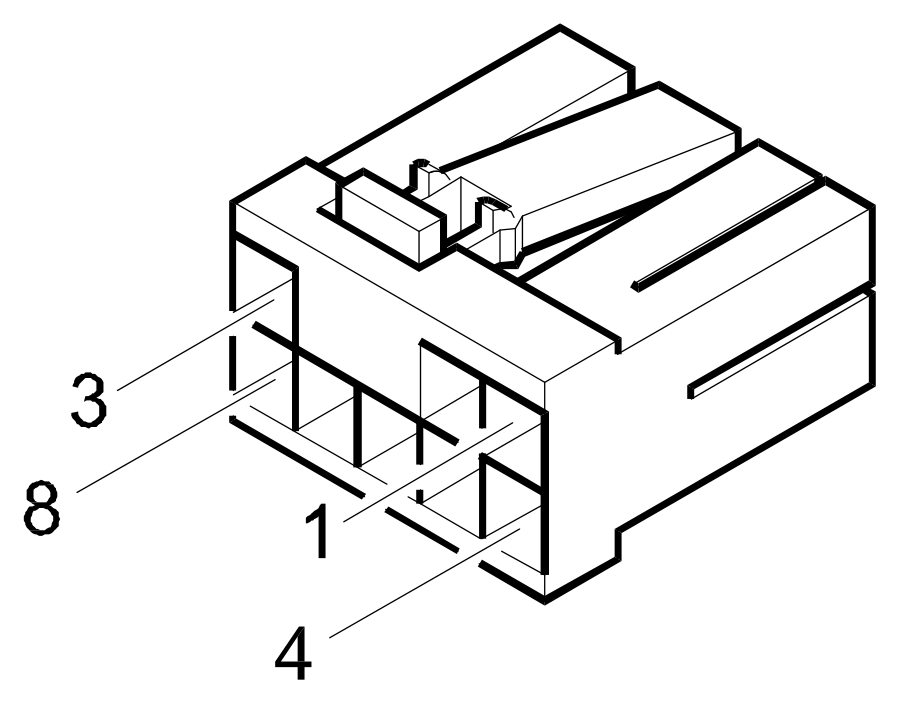

Connector D60 – air bag harness (white)

Pin	mm²	Colour		To
1		R	red	M60A pin 7
2		H	grey	M60A pin 12
3		C	orange	M60A pin 17
4		BR	white/red	M60A pin 9

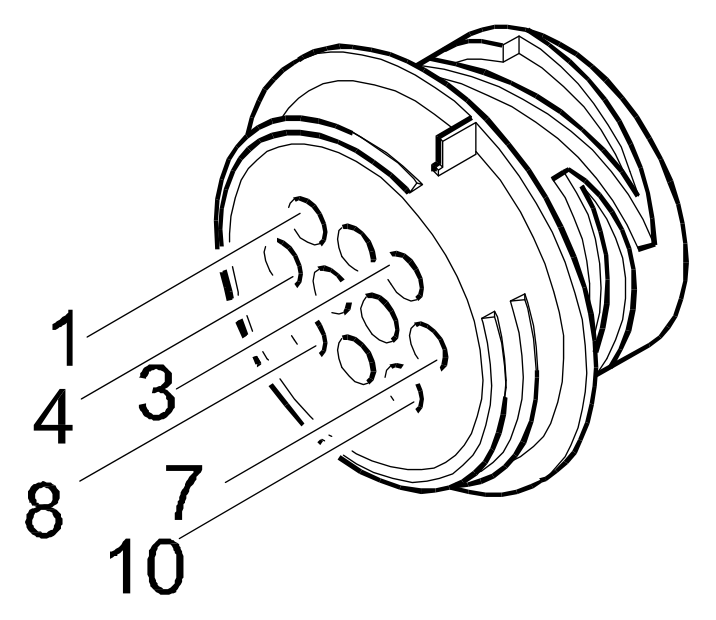

Connector D60 – dashboard harness (white) – S.W.

Pin	mm²	Colour		To
1	1	A	light blue	B98B pin 10
2	0.5	H	grey	D1 pin A7
3	0.5	CN	orange/black	D1 pin C3
4	1	BV	white/green	D1 pin C2

Connector D60 – dashboard harness (white) – from 01/00

Pin	mm²	Colour		To
1	1.0	C	orange	B98B pin 10
2		H	grey	D1 pin A7
3	1.0	CN	orange/black	D1 pin C3
4	1.0	BV	white/green	D1 pin C2

Connector D60 – dashboard harness (white) – <03/98

Pin	mm²	Colour		To
1	1.0	C	orange	D1 pin 10
2		H	grey	D1 pin 8
3	1.0	CN	orange/black	D1 pin 19
4	1.0	BV	white/green	D1 pin 18

Connector D60 – air bag harness (white)

Pin	mm²	Colour		To
1		R	red	M60 pin 15
2		H	grey	M60 pin 20
3		C	orange	M60 pin 13
4		BR	white/red	M60 pin 9

Connector D60 – air bag harness (white) – Front Air BagSide

Pin	mm²	Colour		To
1		R	red	M60 pin 5
2		H	grey	M60 pin 33
3		C	orange	M60 pin 7
4		BR	white/red	M60 pin 9

Wiring diagrams

• E7030
• E8010
