P10 High-tone horn

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Users › P10 High-tone horn

Connectors and pin-outsP10 High-tone horn

P10 High-tone horn

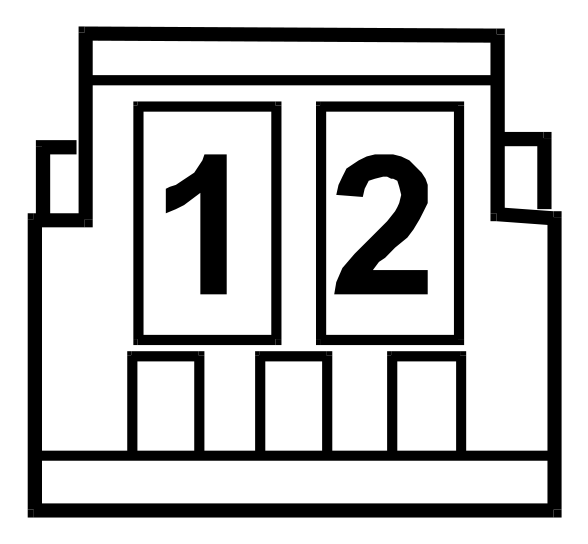

Connector P10A – front harness (black)

Pin	mm²	Colour		To
1	1.0	Z	violet	B01A pin 27

Connector P10B – front harness (black)

Pin	mm²	Colour		To
1	1.0	N	black	C11 pin 3

Wiring diagrams

• E3010

16 General
