C11 Right front earth

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Ground › C11 Right front earth

Connectors and pin-outsC11 Right front earth

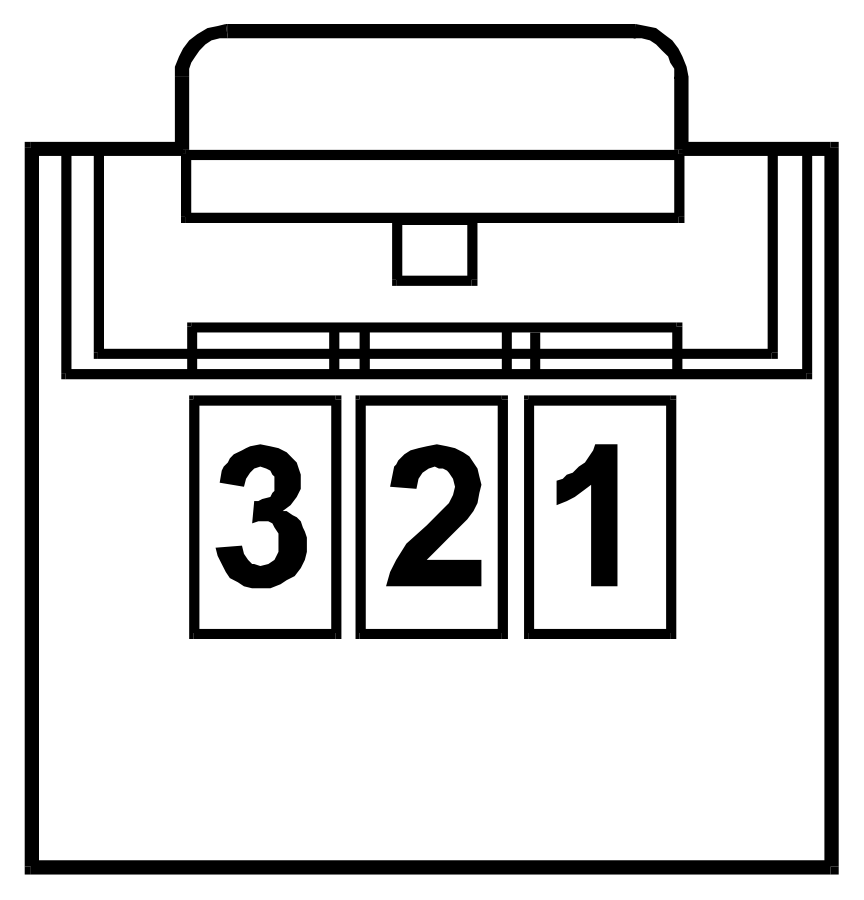

C11 Right front earth

Connector C11 – front harness (black)

Pin	mm²	Colour		To
2	1.0	N	black	P11B pin 1
3	1.0	N	black	P10B pin 1
4		NZ	black/violet	K10 pin 6
5	1.5	NZ	black/violet	N25 pin 2
6	2.5	N	black	F11 pin 1
9		NZ	black/violet	I10 pin 2
10		NZ	black/violet	D51 pin 4
13		NZ	black/violet	D51 pin 2
14		NZ	black/violet	F11 pin 2

Connector C11 – front harness (black) – Selespeed

Pin	mm²	Colour		To
1		N	black	D79 pin 9
2	1.0	N	black	P11B pin 1
3	1.0	N	black	P10B pin 1
4		NZ	black/violet	K10 pin 6
5	1.5	NZ	black/violet	N25 pin 2
6	2.5	N	black	F11 pin 1
7		NZ	black/violet	J87 pin 2
9		NZ	black/violet	I10 pin 2
10		NZ	black/violet	D51 pin 4
13		NZ	black/violet	D51 pin 2
14		NZ	black/violet	F11 pin 2
15	1.5	NL	black/blue	M54A pin 2
16	1.5	NV	black/green	M54 pin 1 H37 pin 1 D1 pin 7 D79 pin 5 D79 pin 8
17	1.5	NV	black/green	D79 pin 1

Wiring diagrams

• E1020
• E2010
• E2011
• E2012
• E2020
• E2030
• E3010
• E3022
• E3080
• E5020
• E7015
• E7051
