H37 Gear controls

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Manual electric controls › H37 Gear controls

Connectors and pin-outsH37 Gear controls

H37 Gear controls

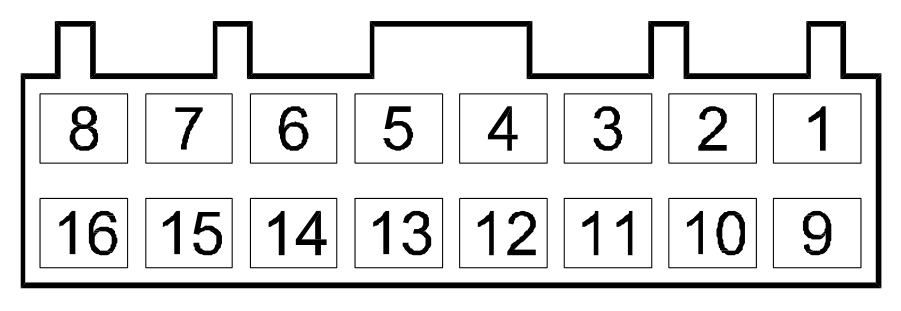

Connector H37A – front harness (white)

Pin	mm²	Colour		To
1	1.5	NV	black/green	M54A pin 1 D79 pin 5 D1 pin 7 D79 pin 8 C11 pin 16
2		GH	yellow/grey	M54A pin 26
3		GN	yellow/black	M54B pin 68
4		BR	white/red	M54B pin 67
5		BV	white/green	M54B pin 74

Connector H37B – front harness

Pin	mm²	Colour		To
1		HR	grey/red	B02A pin 13
2		N	black	C10 pin 13

Wiring diagrams

• E7051
