Alfa Romeo 147 Factory Service Manual (2000-2002)15 · Wiring diagrams
15 · Electrical

E2030 Fog lamp

Make
Alfa Romeo
Model
147 Factory Service Manual
Year
2000–2002
Section
Exterior lighting › E2030 Fog lamp
Wiring diagramsE2030 Fog lamp

E2030 Fog lamp

Description

The vehicle has two additional fog lights in the light clusters.

The fog lights are activated through a button in the centre panel; an LED in the back of the button also lights up when these lights are on.

A special relay, in the engine compartment control unit, controls the switching on of the fog lights via a line protected by a special fuse.

The relay is managed by the Body Computer: the relay is energized in the following conditions:

  • go ahead signal with key in ON position (INT);
  • signal from the switch in the panel;
  • side lights on signal.

In addition, if the side lights are switched off, the fog lights are also switched off even if the button is pressed. When the side lights are turned on again, the fog lamps come back on.

If the ignition key is switched OFF and then turned back to the ON position, the operating button must be pressed once again in order to turn the fog lights back on.

Description of operation

The fog lights activated signal reaches pin 1 of connector D of M1 from the control button in the centre panel H12.

The side lights activated signal is sent to pin 28 of connector B of the Body Computer M1 from the steering column switch unit H5 Wiring diagram E2010 SIDE LIGHTS / NUMBER PLATE .

The 'ignition ON' signal (INT) for the switch H1 reaches the underdashboard control unit B2 at pin 11 of connector H and from there moves on to the Body Computer M1 (pin 9 of connector F).

The Body Computer M1 controls the supply for the fog lights by sending an earth signal to the engine compartment control unit B1 from pin 8 of connector A of M1 which energizes the relay T14: this supplies the fog lights F10 (left) and F11 (right). The circuit is protected by fuse F30 of control unit B2.

A signal is sent, from pin 22 of connector C of M1, to light up the LED in the control button H12 (it is an earth signal which lights up the warning light controlled by the ignition (INT) from the line of fuse F49 of the control unit B2).

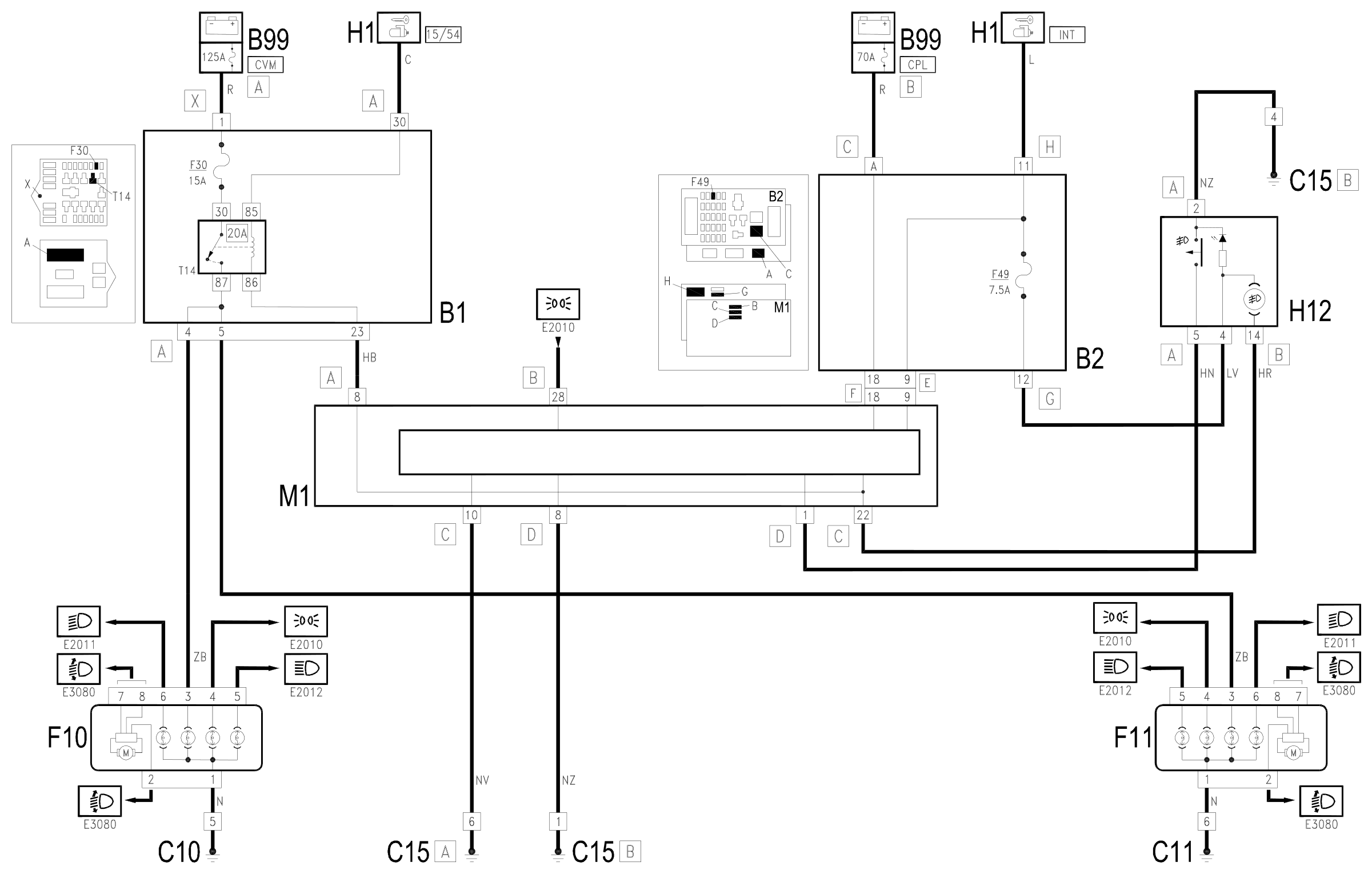

Wiring diagram

Wiring diagram E2030 FOG LAMP

Components

CodeComponentSee
B01Engine compartment junction unit description 5505A
B02Junction unit under dashboard description 5505A
B99Maxifuse box on battery description 5530B
C10Front left earth
C11Right front earth
C15Facia earth, driver's side
F10Left headlamp description 5540B
F11Right headlamp description 5540B
H01Ignition switch description 5520A
H12Hazard warning lights, fog lights, rear fog lamps control description 5505A
M01Body computer description 5505A

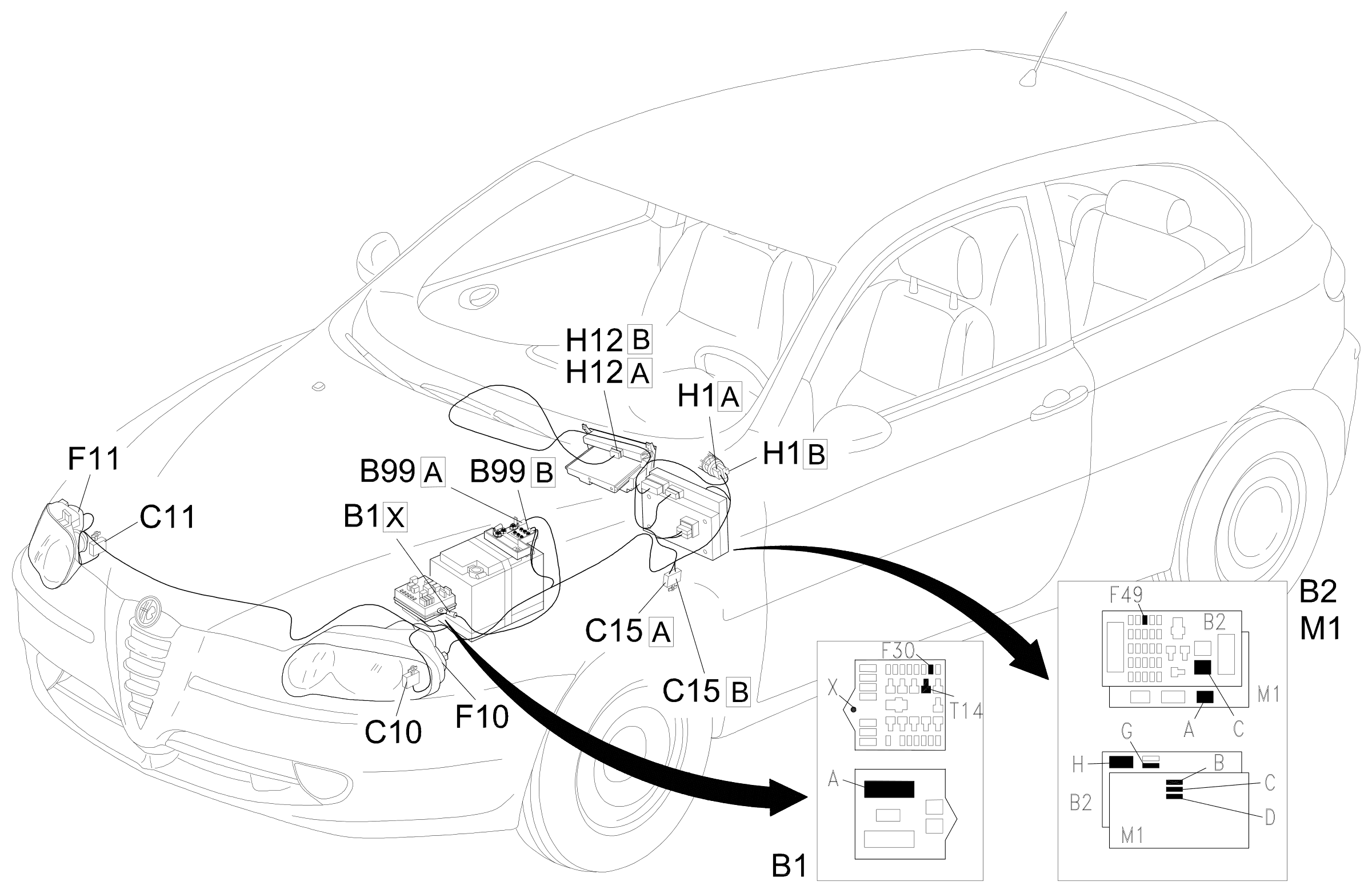

Component location

Location of components, E2030
