STEERINGSteering Control Diagram – Steering Wheel Heating
STEERING
57-8
DESCRIPTION AND OPERATION

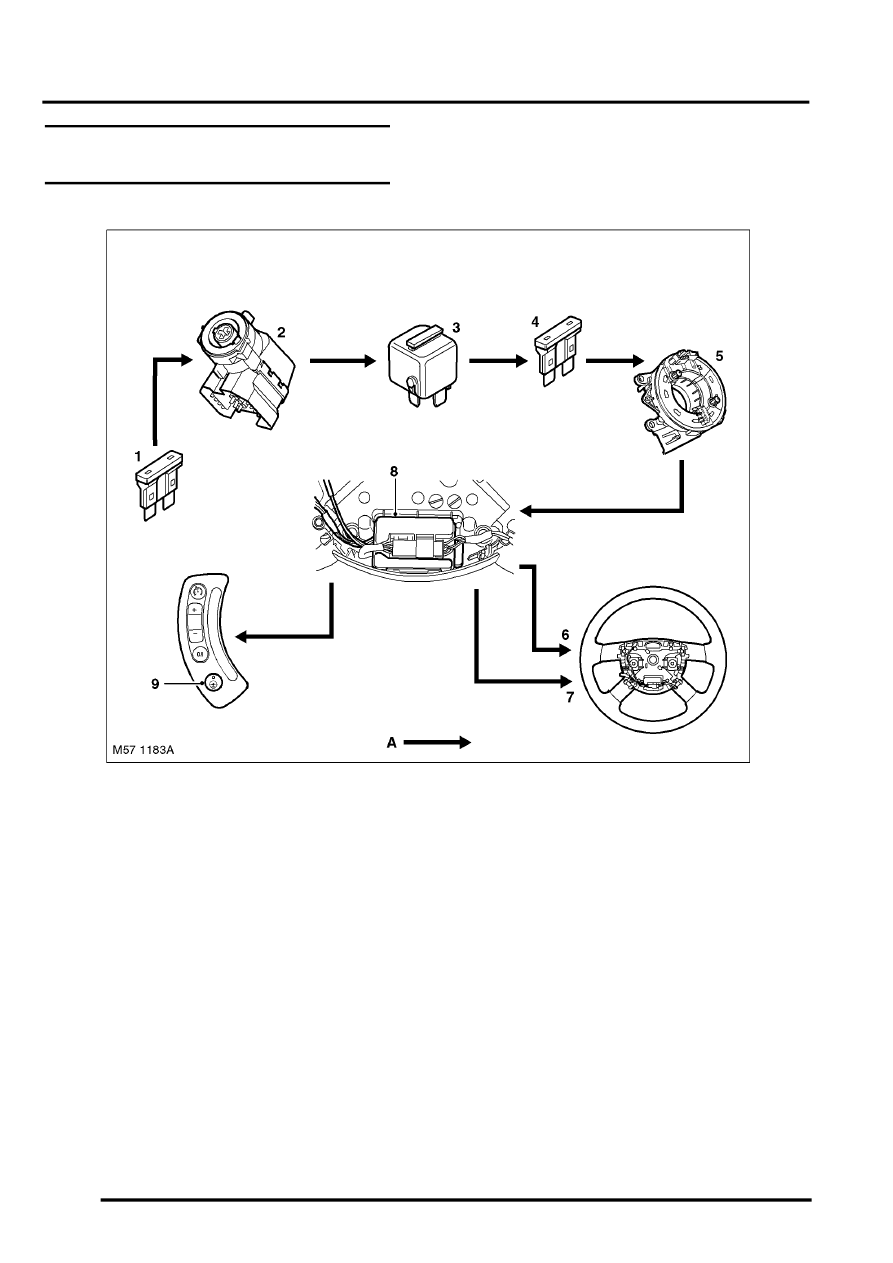

Steering Control Diagram – Steering
Wheel Heating
A = Hardwired
1 Fuse 30A – Permanent battery supply
2 Ignition switch
3 Steering wheel relay
4 Fuse 10A – Steering wheel heating ECU supply
5 Rotary coupler
6 Steering wheel heater element
7 Steering wheel heater thermostat
8 Steering wheel heating ECU
9 Steering wheel heater switch
