STEERINGSteering Control Diagram – Column Adjustment – With Memory
STEERING
DESCRIPTION AND OPERATION
57-5

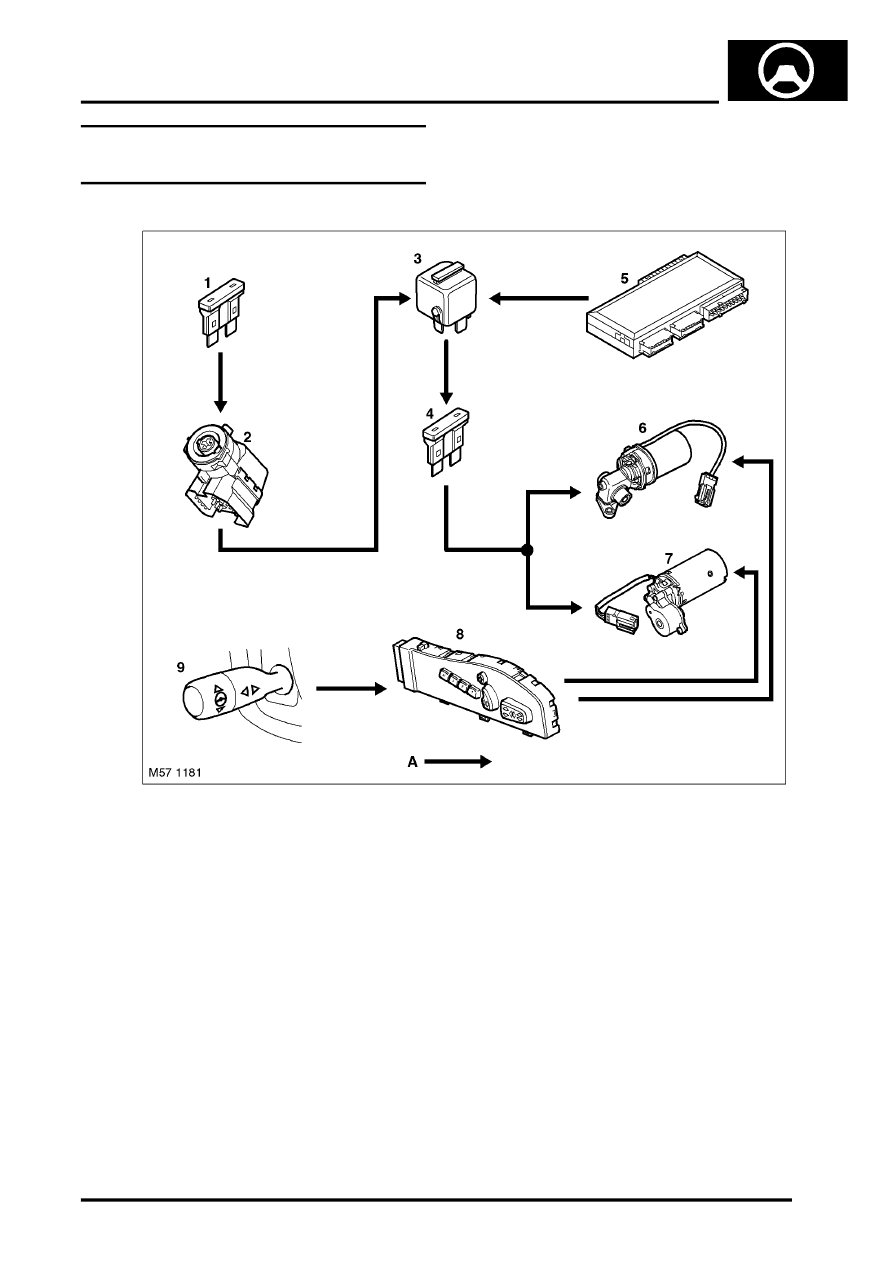

Steering Control Diagram – Column
Adjustment – With Memory
A = Hardwired
1 Fuse 30A – Permanent battery supply
2 Ignition switch
3 Seat relay
4 Fuse 30A – Seat power supply
5 Body Control Unit (BCU)
6 Column adjustment motor – reach
7 Column adjustment motor – tilt
8 Seat memory ECU
9 Steering column switch
