Description (page 10 of 13)

RESTRAINT SYSTEMS

75-14

DESCRIPTION AND OPERATION

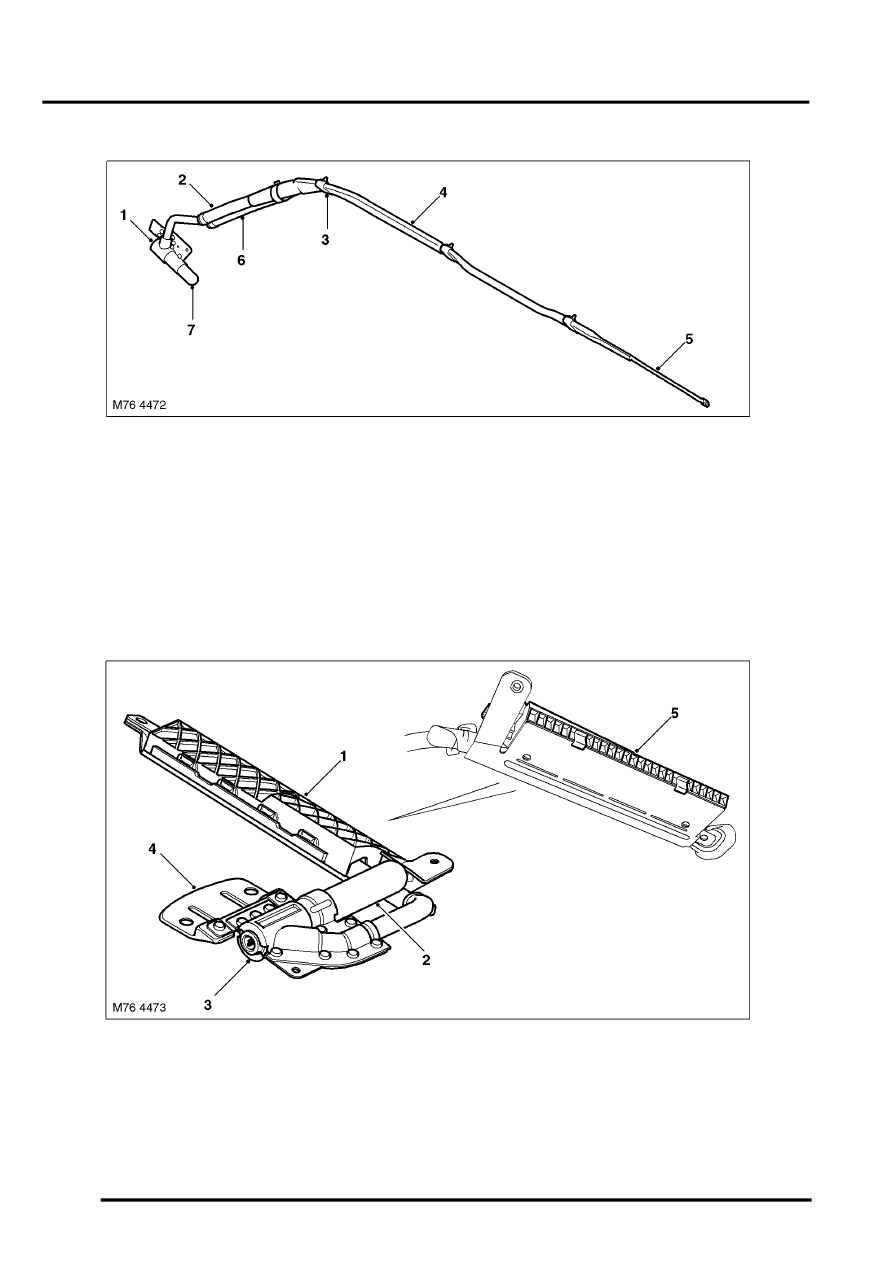

Front Head Airbag

1 Electrical connector
2 Inflation tube
3 Retaining clip
4 Airbag

5 Rear tether strap
6 Front tether strap
7 Gas generator

The front head airbags are installed behind the A post trim and above the outer edges of the headlining. The inflatable
bag incorporates tether straps at each end which are attached to the body. When the airbag deploys, the inflating bag
shortens in length and pulls on the tether straps, which forces it from behind the trim to cover the window in a straight
line between the tether strap anchor points.

Rear Head Airbag

1 Housing
2 Gas generator
3 Electrical connector

4 Securing bracket
5 Deployment flap

The rear head airbags are installed behind the outer edges of the headlining above the D post. When the airbag
deploys, the inflating bag forces itself from behind the trim to cover the upper part of the D post and adjacent areas
of the rear door and quarter light.
