Variable Camshaft Control Components

Make

Land Rover

Model

Range Rover L322 Range Rover System Description and Operation

Section

Variable Camshaft Control Components

ENGINE MANAGEMENT SYSTEM – V8Variable Camshaft Control Components

ENGINE MANAGEMENT SYSTEM – V8

18-2-40 DESCRIPTION AND OPERATION

DESCRIPTION AND OPERATION

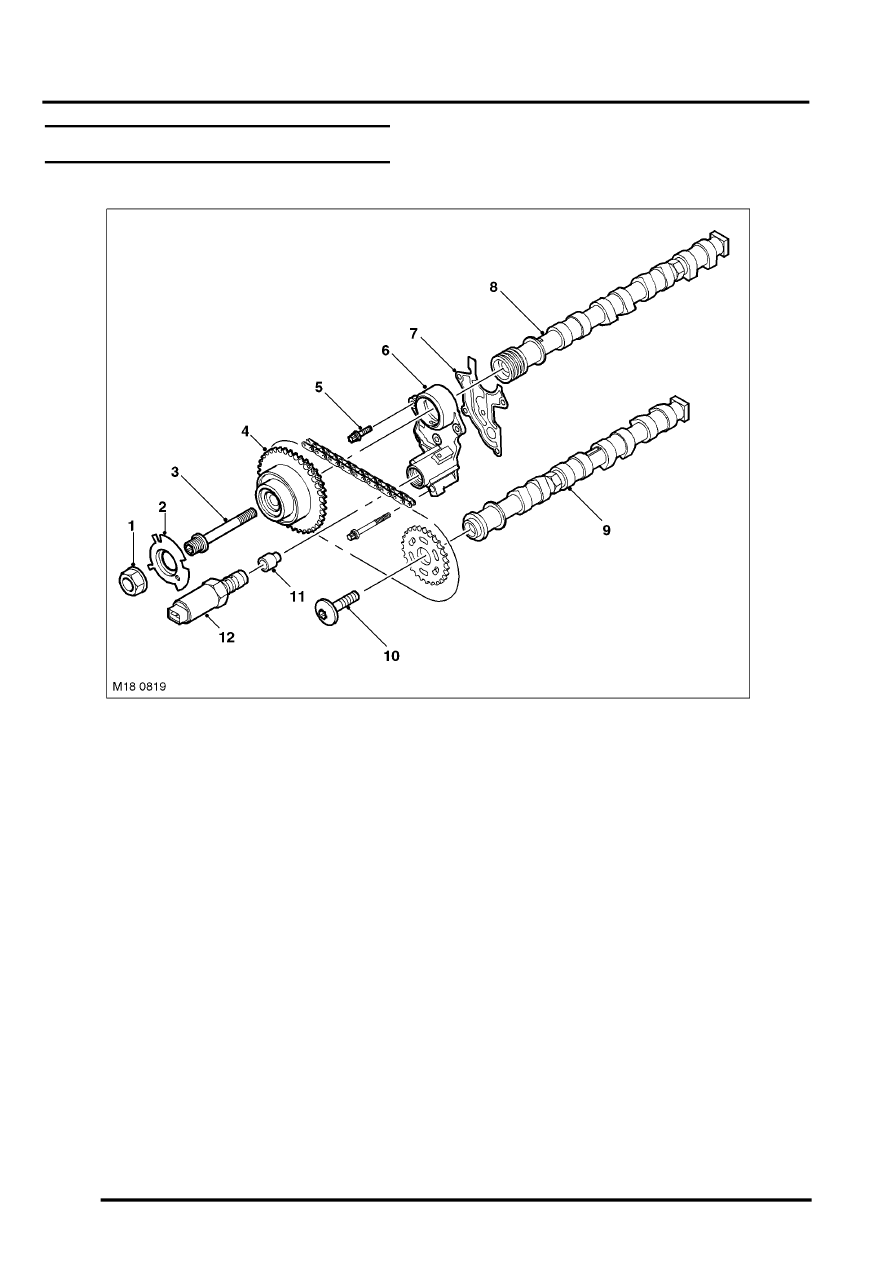

Variable Camshaft Control Components

1 Locking nut
2 Impulse wheel
3 Camshaft to sprocket retaining screw
4 VCC transmission unit
5 Bolt
6 Oil distribution flange

7 Oil distribution flange gasket
8 Inlet camshaft
9 Exhaust camshaft

10 Drive train gear retaining bolt
11 Check valve
12 VCC solenoid valve

12 Engine
