Land Rover L322 Range Rover System Description and Operation12 · ENGINE MANAGEMENT SYSTEM – V8
12 · Engine

EVAP System

Make
Land Rover
Model
Range Rover L322 Range Rover System Description and Operation
Section
EVAP System
ENGINE MANAGEMENT SYSTEM – V8EVAP System
background image

ENGINE MANAGEMENT SYSTEM – V8

18-2-54 DESCRIPTION AND OPERATION

DESCRIPTION AND OPERATION

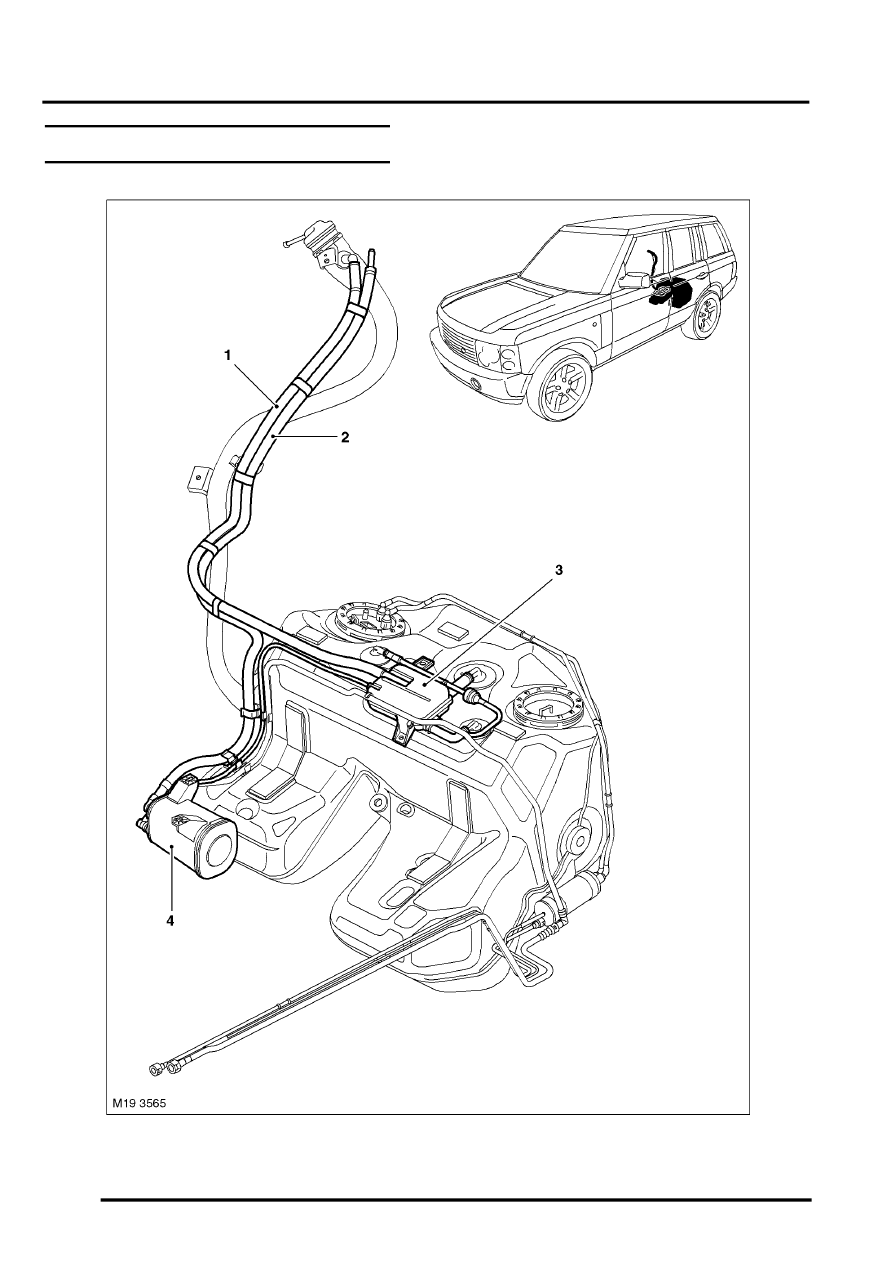

EVAP System

1 Charcoal canister vent hose
2 Atmospheric vent pipe

3 Vapour separator
4 Charcoal canister
