Master Cylinder (page 2 of 4)
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- Foundation Brakes
BRAKESMaster Cylinder · page 2 of 4
BRAKES
DESCRIPTION AND OPERATION
70-7

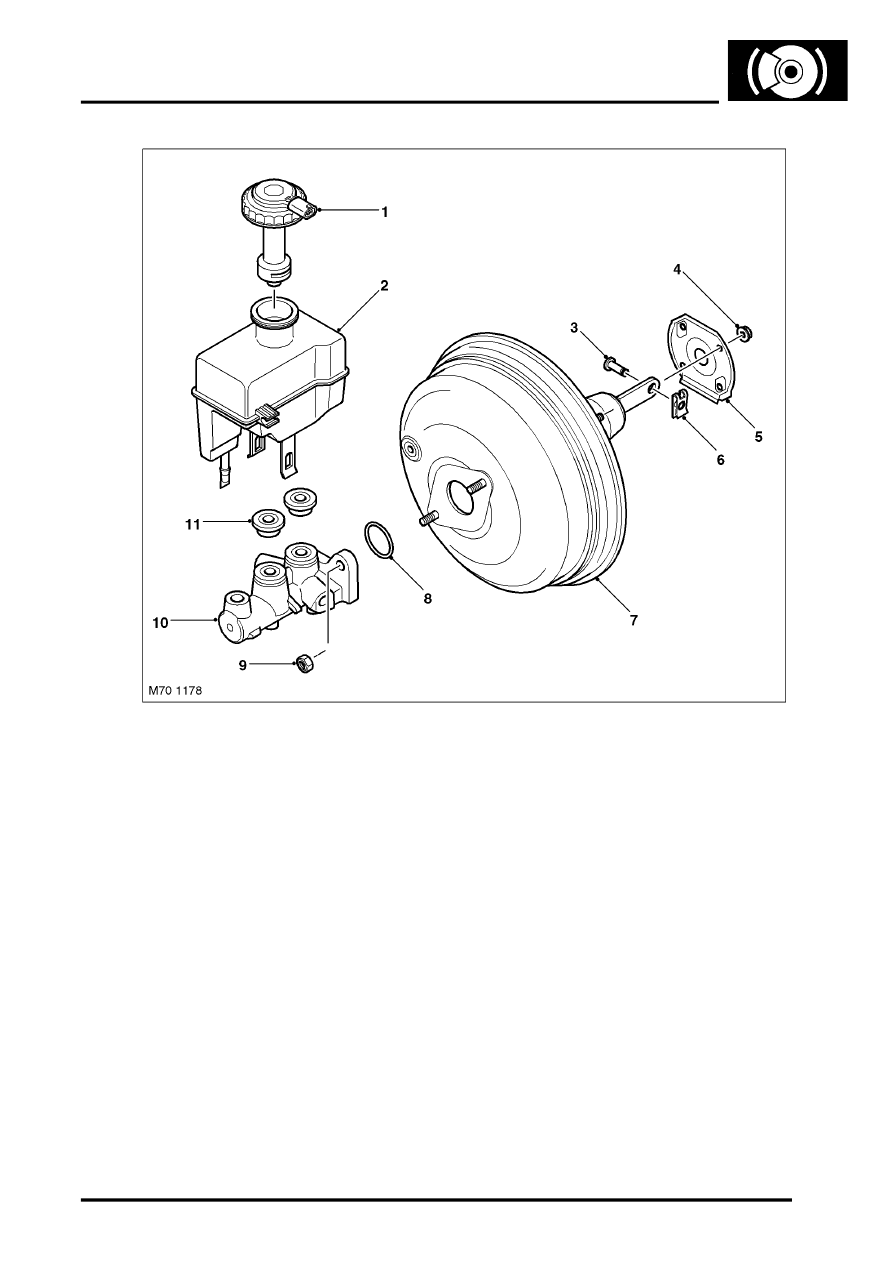

Brake Master Cylinder, Servo and Fluid Reservoir
1 Brake fluid level switch
2 Brake fluid reservoir
3 Retaining pin
4 Retaining nut
5 Plate
6 Retaining clip
7 Brake servo
8 O ring
9 Nut
10 Master cylinder assembly
11 Seals
