Dynamic Stability Control (page 2 of 3)

BRAKES

70-24

DESCRIPTION AND OPERATION

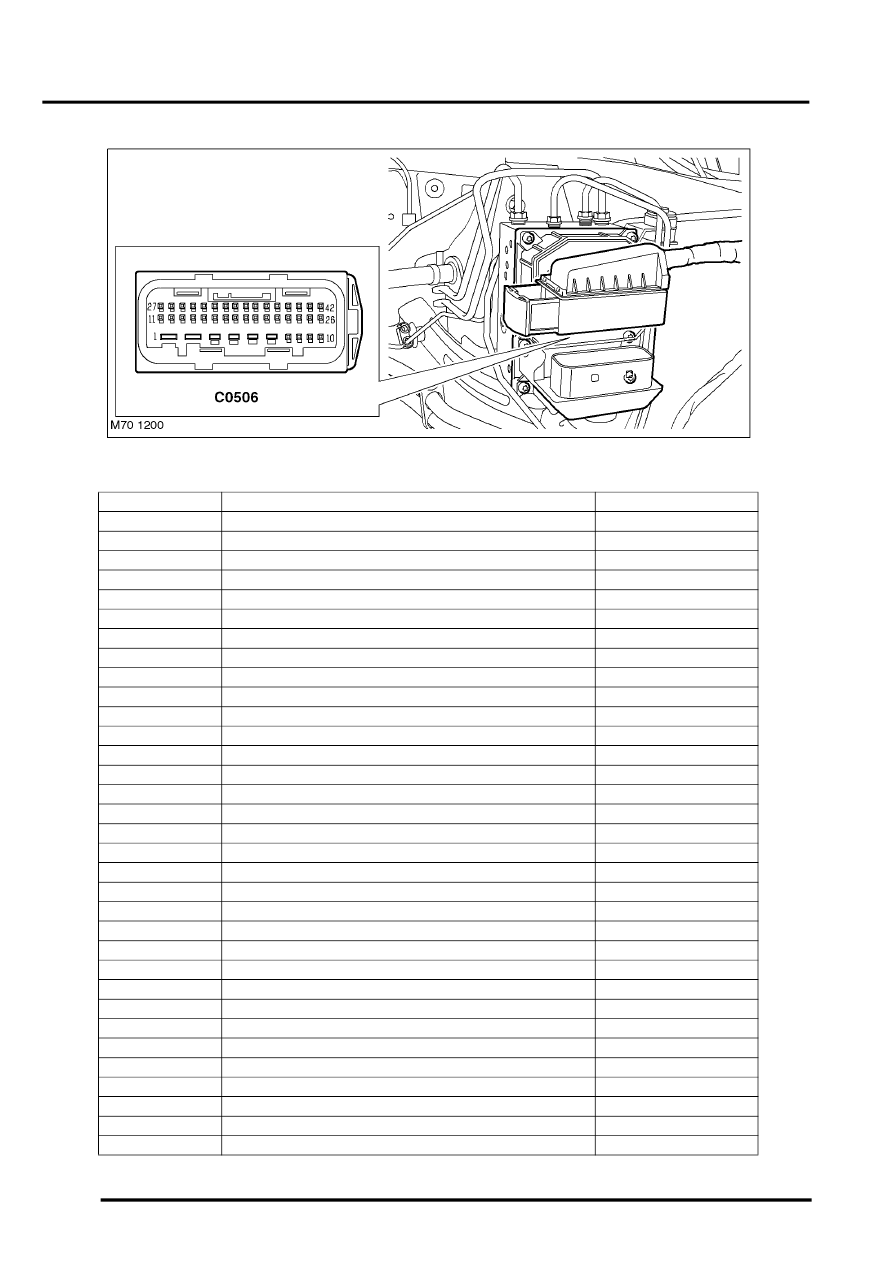

ABS ECU Harness Connector

ABS ECU Harness Connector C0506 Pin Details

Pin No.

Description

Input/Output

1

Ground

–

2

Battery power supply

Input

3

Pre-charge pump power supply

Output

4

Pre-charge pump ground

–

5

Ground

–

6

Battery power supply

Input

7

HDC active signal

Output

8

DSC sensor lateral acceleration

Input

9

DSC sensor test

Output

10

DSC sensor rotation rate

Input

11

Diagnostic DS2 bus

Input/Output

12

Front LH wheel speed sensor signal

Input

13

Rear LH wheel speed sensor reference voltage

Output

14

Rear RH wheel speed sensor reference voltage

Output

15

Front RH wheel speed sensor reference voltage

Output

16

Front RH wheel speed sensor signal

Input

17

HDC switch

Input

18

Front RH wheel speed

Output

19

Rear RH wheel speed

Output

20

ABS indicator light

Output

21

DSC sensor ground

–

22

Not used

–

23

Power supply from ECM relay

Input

24

CAN bus high

Input/Output

25

Brake pressure sensor ground

–

26

Brake pressure sensor signal

Input

27

DSC switch

Input

28

Front LH wheel speed sensor reference voltage

Output

29

Rear LH wheel speed sensor signal

Input

30

Not used

–

31

Rear RH wheel speed sensor signal

Input

32

Brake switch

Input

33

Not used

–
