ZF 5HP24 Automatic Transmission – Exploded View
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- ZF 5HP24 Automatic Transmission – Exploded View
AUTOMATIC TRANSMISSION – ZF 5HP24ZF 5HP24 Automatic Transmission – Exploded View · page 1 of 2
AUTOMATIC TRANSMISSION – ZF 5HP24
44-2-2
DESCRIPTION AND OPERATION
ZF 5HP24 Automatic Transmission –
Exploded View

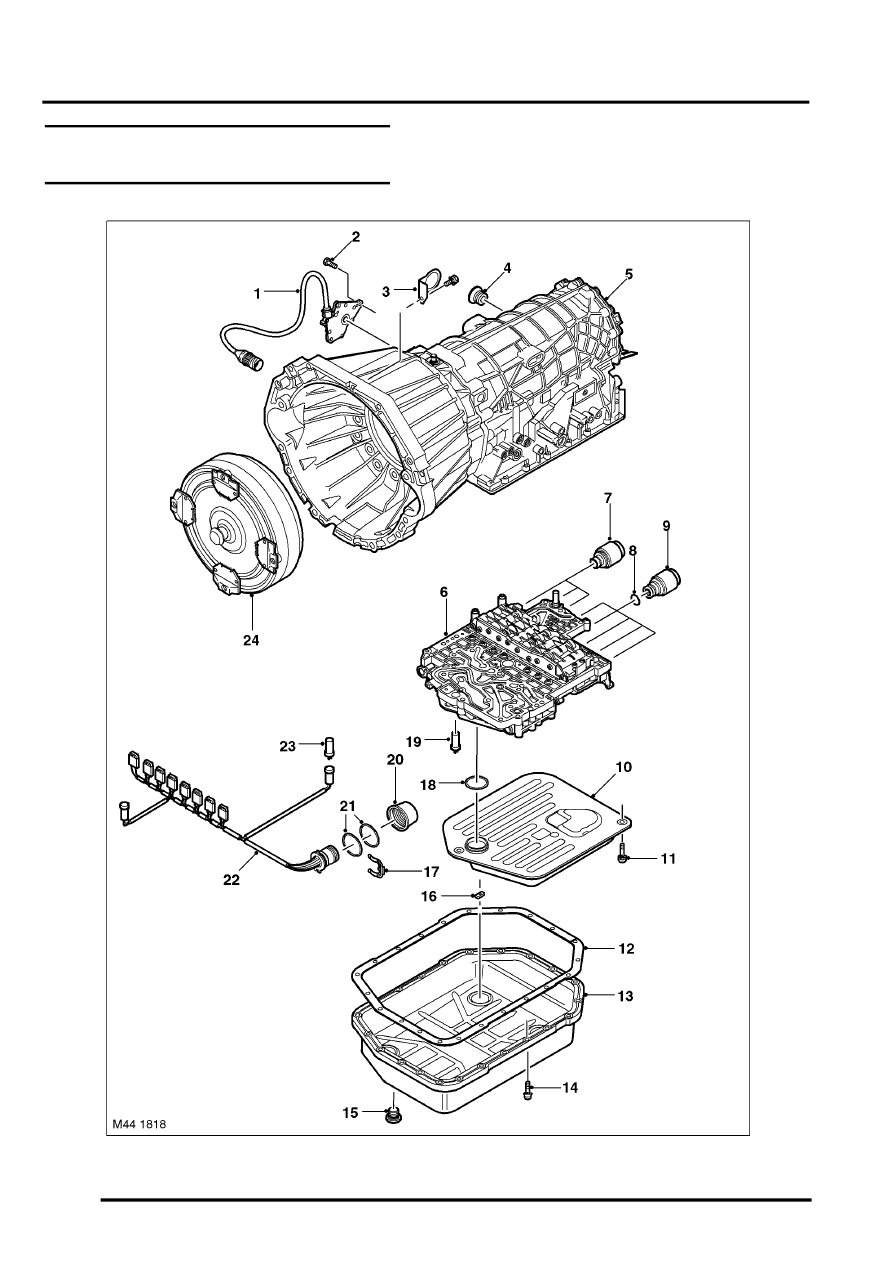

Note the transmission shown is exploded to the extent of the serviceable items
