AIR CONDITIONINGRefrigerant System · page 4 of 4
AIR CONDITIONING
DESCRIPTION AND OPERATION
82-9

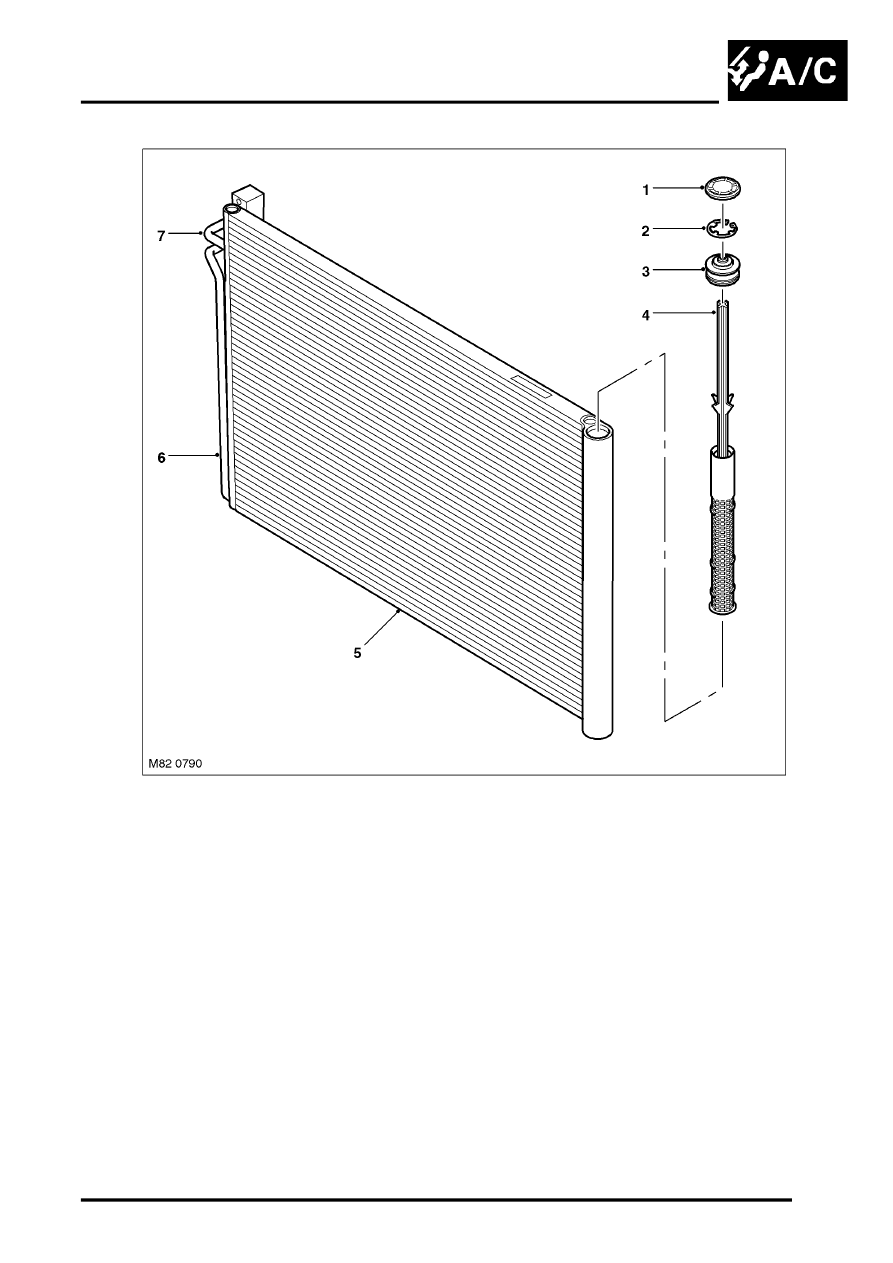

Condenser Assembly
1 Cap
2 Spring clip
3 Sealing plug
4 Desiccant module
5 Condenser
6 Outlet pipe
7 Inlet pipe
