Refrigerant System (page 2 of 4)

AIR CONDITIONING

DESCRIPTION AND OPERATION

82-7

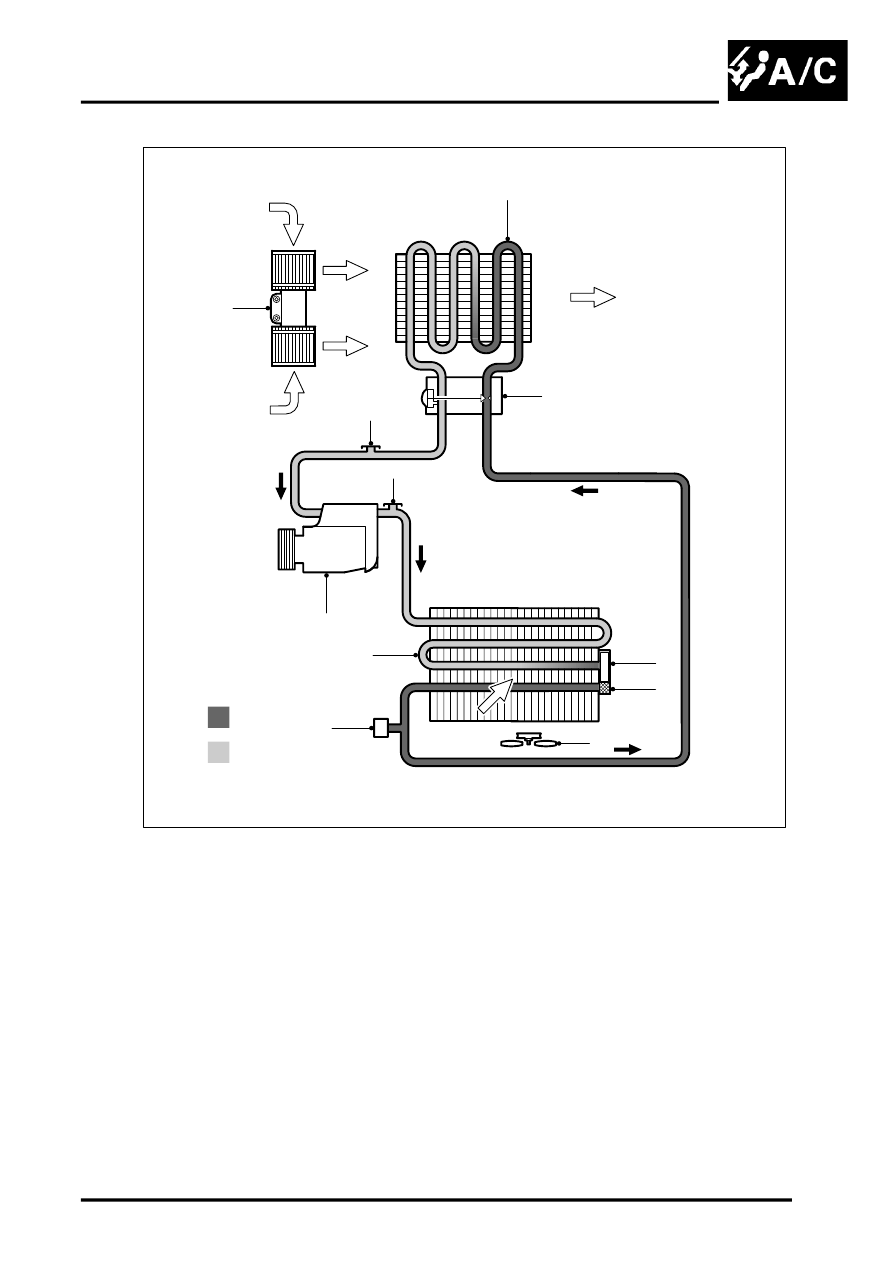

Refrigerant System Schematic

A = Refrigerant liquid; B = Refrigerant vapour

1 Evaporator
2 Thermostatic expansion valve
3 Desiccant (in modulator)
4 Filter (in modulator)
5 Electric cooling fan
6 Refrigerant pressure sensor
7 Condenser
8 Compressor

9 High pressure servicing connection

10 Low pressure servicing
11 Blower
12 Air flows:

a Ambient air flow through condenser

b Fresh/Recirculated air flow through blower

c Cooled air flow to vehicle interior
