Control System Component Location

AIR CONDITIONING

82-4

DESCRIPTION AND OPERATION

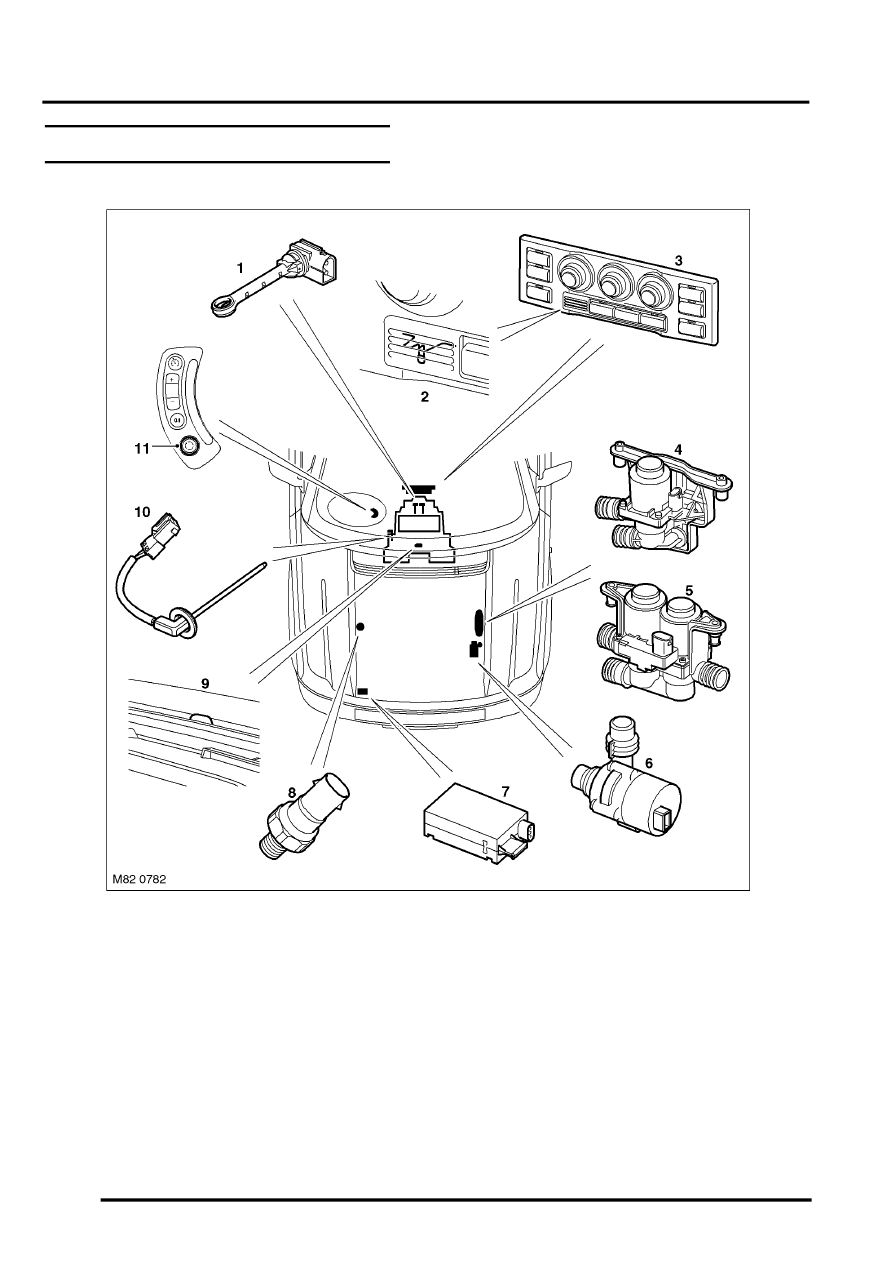

Control System Component Location

1 Heater temperature sensor (LH on low line, LH

and RH on high line)

2 In-car temperature sensor
3 ATC ECU (high line version)
4 Single coolant valve (low line only)
5 Dual coolant valve (high line only)

6 Auxiliary coolant pump
7 Pollution sensor (high line only)
8 Refrigerant pressure sensor
9 Sunlight sensor (high line only)

10 Evaporator temperature sensor
11 Steering wheel recirculation switch
