86 - ELECTRICAL (ALARM COMPONENTS): DESCRIPTION AND OPERATION

ELECTRICAL

5

DESCRIPTION AND OPERATION

ANTI THEFT ALARM SYSTEM

The main function of the system is to offer easy to use
remote locking and unlocking of the vehicle without
having to actively select the alarm function.

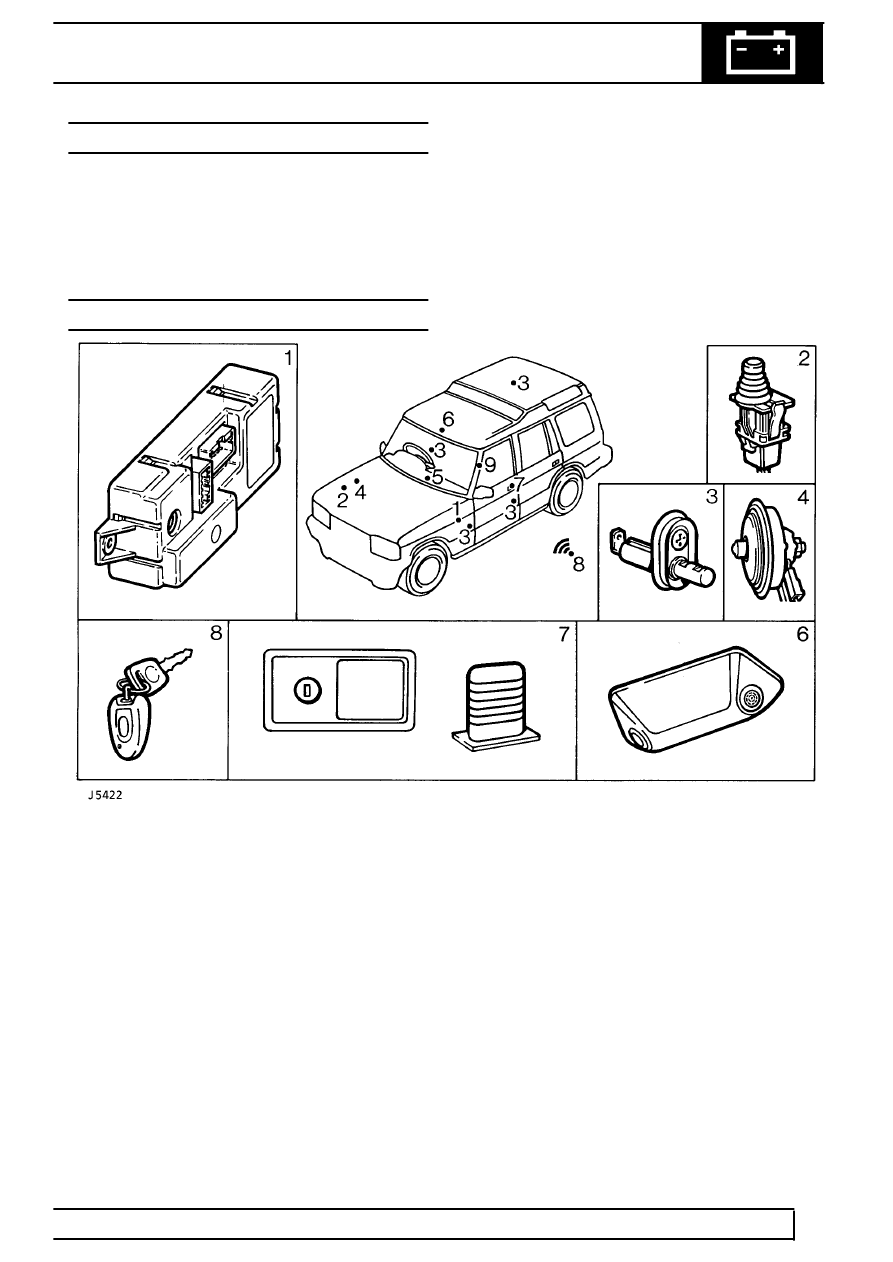

ALARM COMPONENTS

COMPONENT

LOCATION

1.

Electronic control unit (ECU) and relays

Passenger footwell

.................

2.

Bonnet switch

RH engine bay

..........................................................

3.

Door switches

4.

Alarm sounder

RH engine bay

.........................................................

5.

Light emitting diode (LED)

Dash panel

.......................................

6.

Ultrasonic unit

Roof map pocket

.........................................................

7.

Lock barrel, sill buttons

8.

Handset transmitter

9.

Aerial

’A’ post, passenger side.

.......................................................................
