ALARM COMPONENT LOCATIONS (96 MODELS) (86 - ELECTRICAL)

86

ELECTRICAL

6

DESCRIPTION AND OPERATION

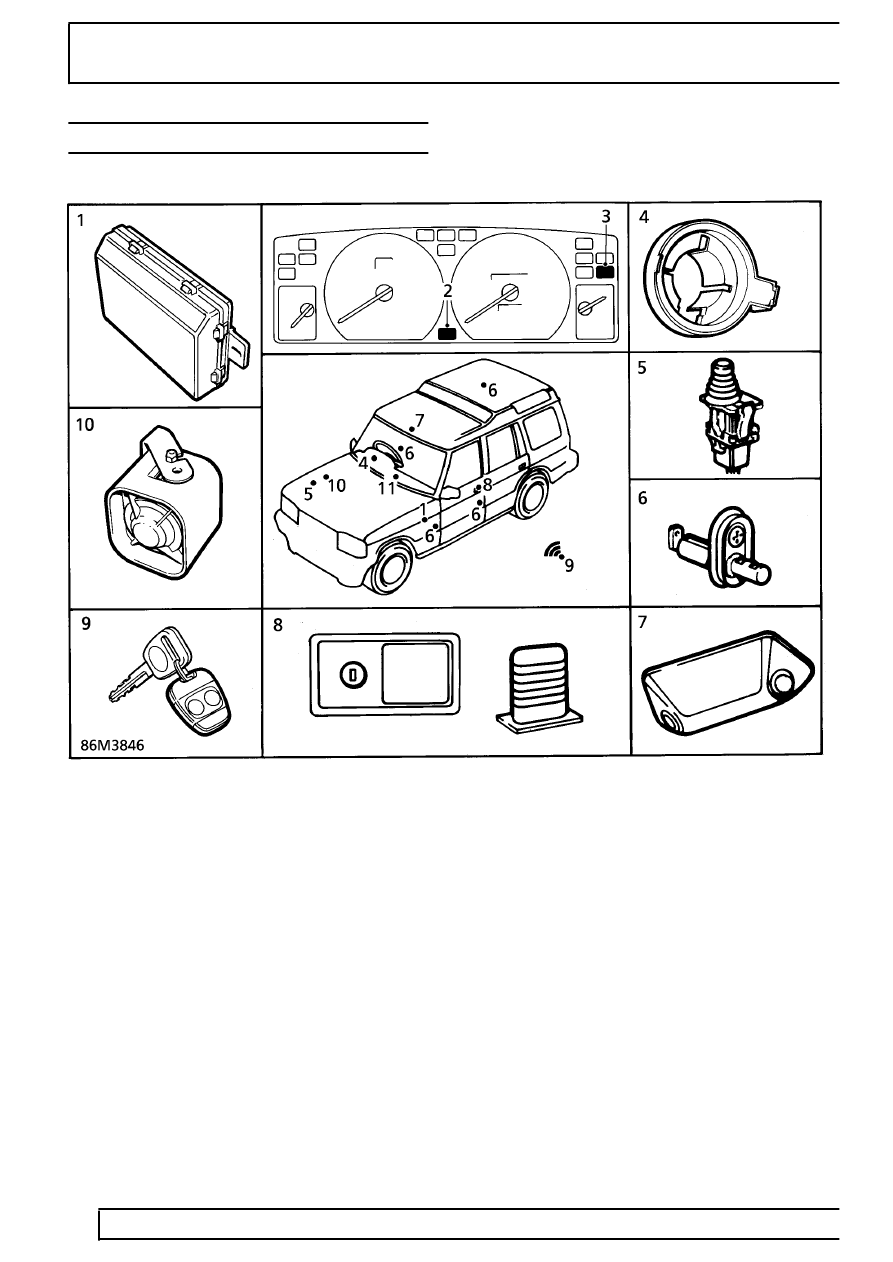

ALARM COMPONENT LOCATIONS (96 MODELS)

COMPONENT

LOCATION

1.

Electronic control unit (ECU) and relays

Under dash (passenger side)

.................

2.

Anti-theft alarm indicator light

Instrument panel

..................................

3.

Engine immobilisation warning light (EIWL) *

Instrument panel

..........

4.

Passive coil

Over starter switch barrel

.............................................................

5.

Bonnet switch

RH engine compartment

..........................................................

6.

Door switches

7.

Ultrasonic sensor

Interior light switch panel

....................................................

8.

Lock barrel, sill buttons

9.

Handset and key

10.

Battery backed-up sounder or horn *

RH engine compartment

......................

11.

Immobilisation unit (spider) *

Above heater

...................................

12.

Aerial

Part of fascia harness

.......................................................................

* where applicable
