REAR SEAT SQUAB COVER

76

CHASSIS AND BODY

26

REPAIR

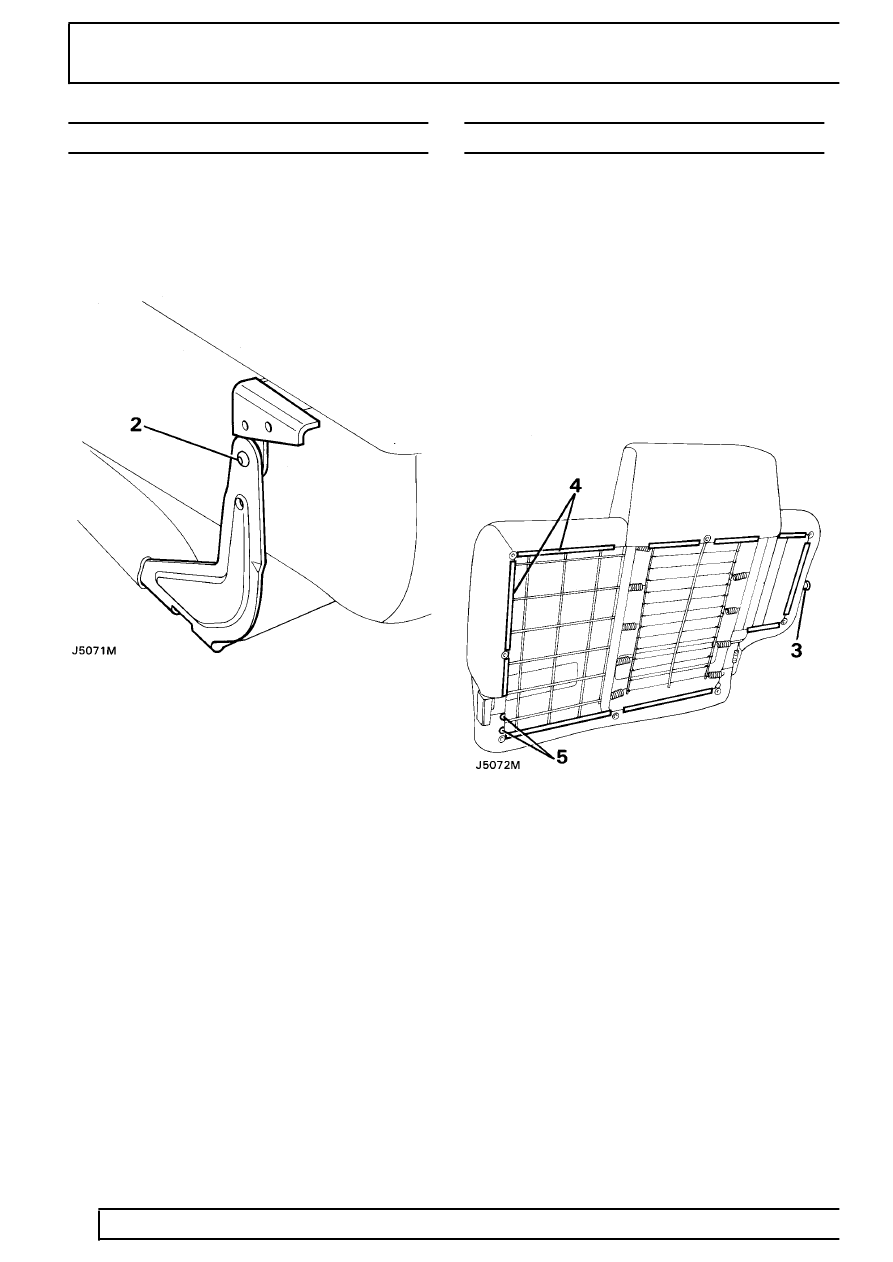

REAR SEAT SQUAB

Service repair no - 76.70.38

Remove

1. Fold the rear seat down.
2. Remove the two seat squab securing bolts.

3. Withdraw the seat squab from the seat

assembly.

Refit

4. Reverse removal procedure.

REAR SEAT SQUAB COVER

Service repair no - 76.70.79/80

Remove

1. Remove the rear seat squab from the seat

assembly and withdraw it from the vehicle.

See

rear seat squab.

2. Remove the rear seat back finisher from the

squab.

3. Remove the squab striker plate.
4. Release the squab cover from the frame.
5. Remove the securing clips and remove the

cover from the squab.

Refit

6. Reverse removal procedure.
