41 - TRANSFER GEARBOXLT230T TRANSFER BOX - OIL LEAKS

TRANSFER GEARBOX

1

FAULT DIAGNOSIS

LT230T TRANSFER BOX - OIL LEAKS

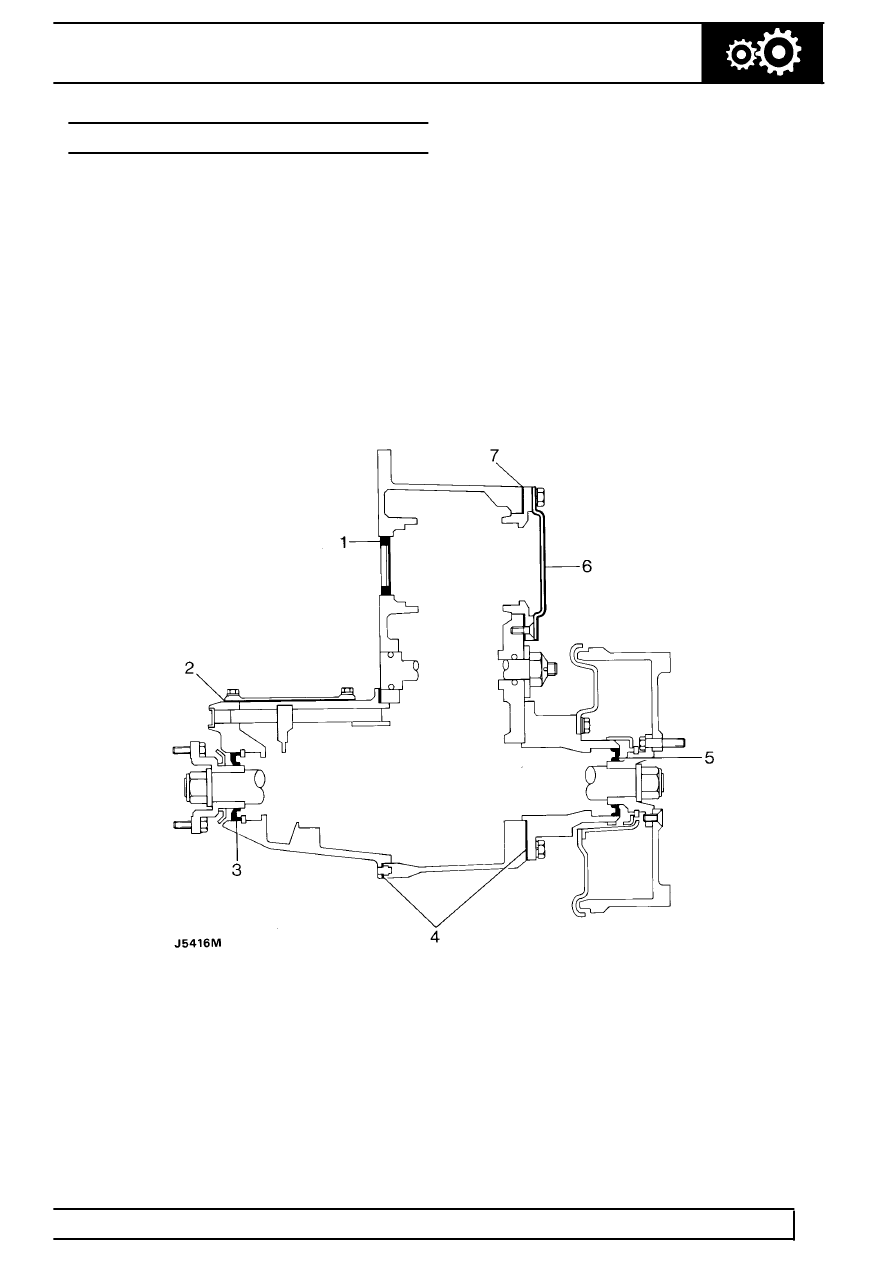

Verify that the leak is from the transfer box and not the
gearbox before proceeding.

1. Input seal.
2. Cover plate joints.
3. Front output seal.
4. Front and rear housing joint faces.
5. Rear output seal.
6. Power take off cover plate joint.
7. Bearing plate joint.
