Land Rover 300Tdi Discovery28 · 30 - MANIFOLD AND EXHAUST SYSTEM
28 · Engine

INLET MANIFOLD GASKET - Mpi (page 2 of 2)

Make
Land Rover
Model
Discovery 300Tdi Discovery
Section
REPAIR
30 - MANIFOLD AND EXHAUST SYSTEMINLET MANIFOLD GASKET - Mpi · page 2 of 2
background image

30

MANIFOLD AND EXHAUST SYSTEM

6

REPAIR

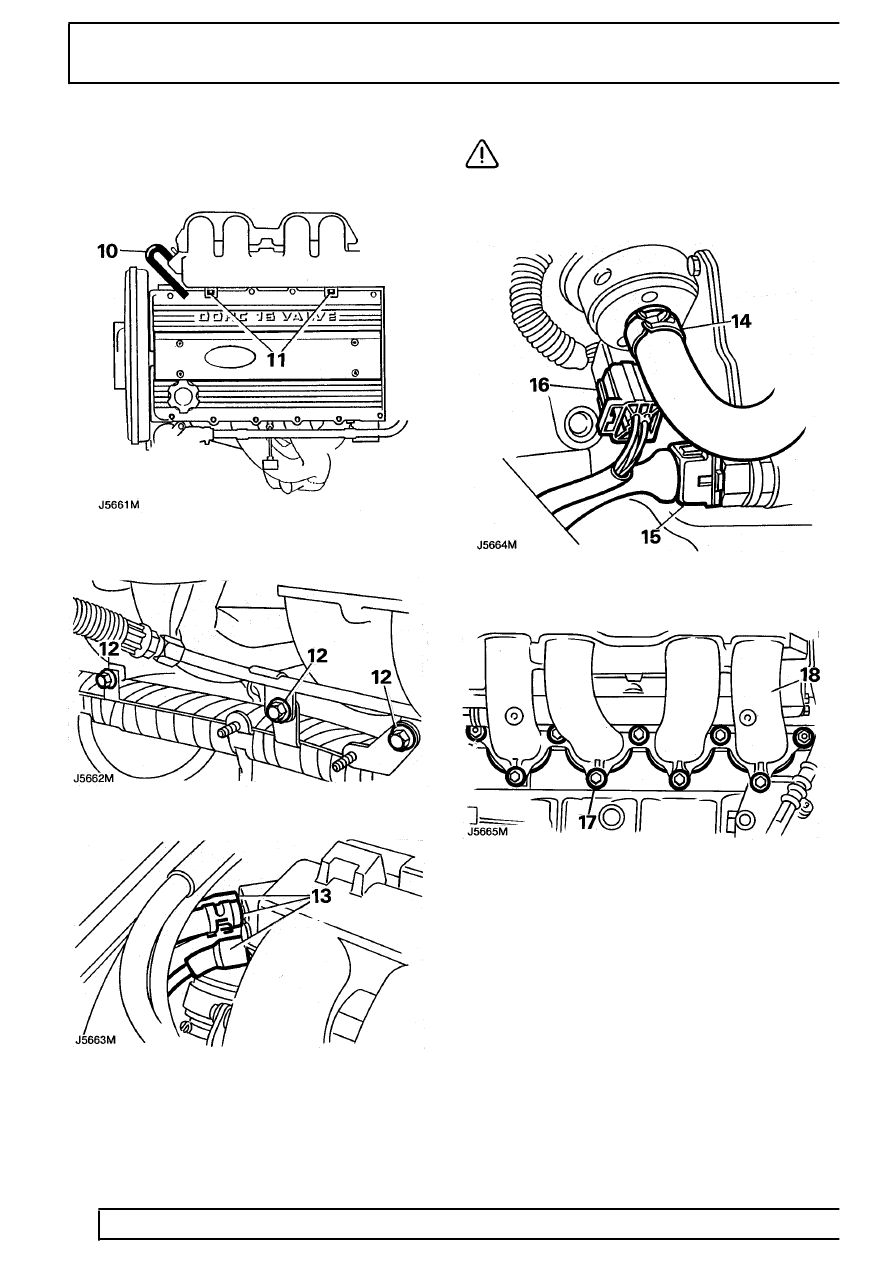

10. Release clip and disconnect breather hose from

manifold.

11. Release 2 bolts securing cam cover brackets to

manifold.

12. Remove 3 bolts securing engine harness to

manifold.

13. Disconnect 3 vacuum hoses from manifold.

14. Release clip and disconnect fuel hose from

pressure regulator.

CAUTION: Plug the connections.

15. Disconnect intake air temperature sensor

multiplug.

16. Disconnect fuel injector harness multiplug.

17. Remove 2 nuts and 7 bolts securing manifold to

cylinder head

18. Remove manifold assembly and collect gaskets.
