INSTRUMENT PANEL - Wiring diagram

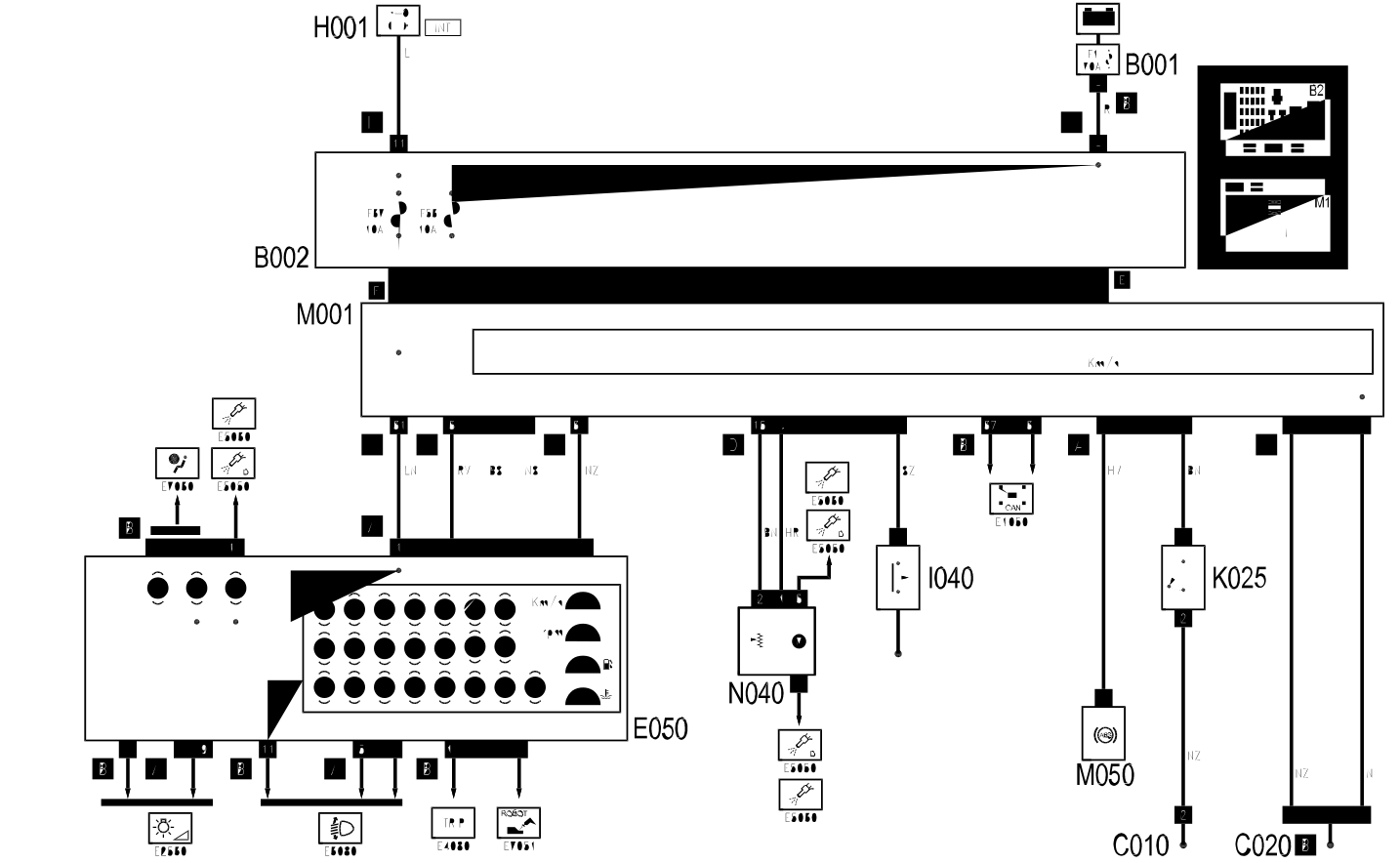

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C10 | Front left earth | |
| C20 | Passenger side dashboard earth | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| I40 | Handbrake switch | 5550D |
| K25 | Brake fluid level sensor (switch) | 3330C |
| M1 | Body computer | 5505A |
| M50 | ABS control unit | 3340A |
| N40 | Fuel pump and sender unit | 1040A |
