P026 handsfree microphone
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Various consumers › P026 handsfree microphone
Connectors and pin-outsP026 handsfree microphone

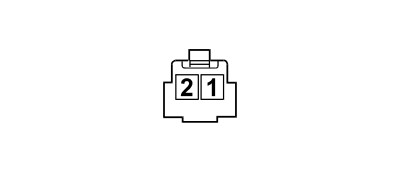

P026 HANDSFREE MICROPHONE
| Wiring | Colour |
|---|---|
| See 25 REAR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | HB | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 10 | |
| 2 | 0,5 | MB | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 11 | |
