D009 front/radiator coupling

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D009 front/radiator coupling

Connectors and pin-outsD009 front/radiator coupling

D009 FRONT/RADIATOR COUPLING

1.3 JTD 16v · Air Conditioner

Wiring	Colour

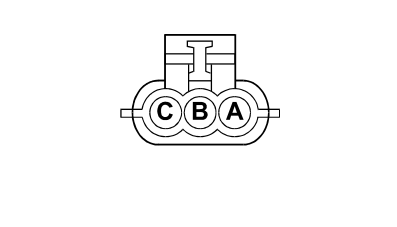

See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	4	RN		See B001D JUNCTION UNIT (FRONT)	53
B	4	N		See C045 FAN EARTH	1
C	2,5	AN		See B001D JUNCTION UNIT (FRONT)	56

Wiring	Colour

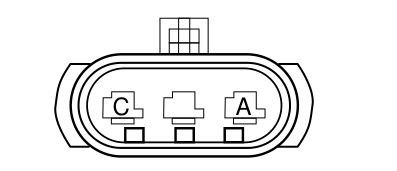

See 11 RADIATOR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	4	R	X	See O010B ENGINE FAN ADJUSTMENT RESISTANCE - 1 (FRONT)	1
				See N011 FAN MOTOR	1
B	4	N		See N011 FAN MOTOR	2
C	2,5	H		See O010A ENGINE FAN ADJUSTMENT RESISTANCE - 1 (FRONT)	1
