D081 injector coupling

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Intermediate couplings › D081 injector coupling

Connectors and pin-outsD081 injector coupling

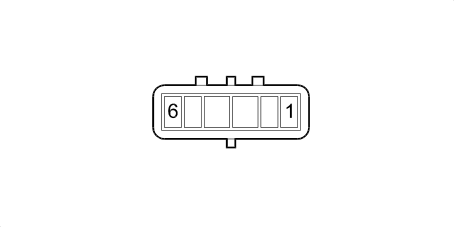

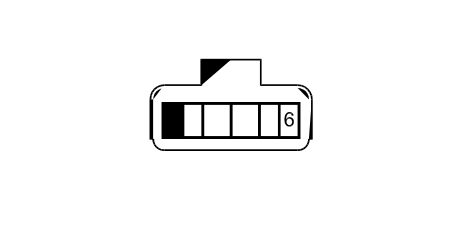

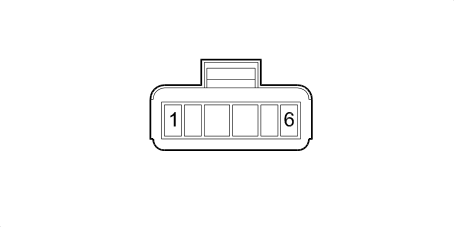

D081 INJECTOR COUPLING

1.6 16v · from 12/03 · BIPOWER, MY 2005

Wiring	Colour
See 55 COILS/ FUEL INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	GR		See N070A INJECTOR (COILS AND FUEL INJECTORS)	2
2	0,75	LR		See N070B INJECTOR (COILS AND FUEL INJECTORS)	2
3	2,5	MB	X	See N070A INJECTOR (COILS AND FUEL INJECTORS)	1
				See N070B INJECTOR (COILS AND FUEL INJECTORS)	1
				See N070C INJECTOR (COILS AND FUEL INJECTORS)	1
				See N070D INJECTOR (COILS AND FUEL INJECTORS)	1
5	0,75	NR		See N070C INJECTOR (COILS AND FUEL INJECTORS)	2
6	0,75	RV		See N070D INJECTOR (COILS AND FUEL INJECTORS)	2

1.4 8v · from 12/03 · MY 2005

Wiring	Colour
See 55 COILS/ FUEL INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	LN		See N070A INJECTOR (COILS AND FUEL INJECTORS)	2
2	0,75	HN		See N070B INJECTOR (COILS AND FUEL INJECTORS)	2
3	1	HG	X	See N070A INJECTOR (COILS AND FUEL INJECTORS)	1
				See N070B INJECTOR (COILS AND FUEL INJECTORS)	1
				See N070C INJECTOR (COILS AND FUEL INJECTORS)	1
				See N070D INJECTOR (COILS AND FUEL INJECTORS)	1
4	0,75	MN		See N070C INJECTOR (COILS AND FUEL INJECTORS)	2
5	0,75	NR		See N070D INJECTOR (COILS AND FUEL INJECTORS)	2

1.6 16v · from 12/03 · BIPOWER, MY 2005

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	LN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	71
2	0,75	GV		See M010B ENGINE MANAGEMENT ECU (ENGINE)	79
3	1,5	MB	X	See B001F JUNCTION UNIT (INJECTION BRAID / ENGINE SERVICES)	18
				See A030 IGNITION COIL	2
				See J026 METHANE/LPG RELAY FEED	5
5	0,75	MV		See M010B ENGINE MANAGEMENT ECU (ENGINE)	78
6	0,75	BV		See M010B ENGINE MANAGEMENT ECU (ENGINE)	72

1.4 8v · from 12/03 · MY 2005

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	LN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	50
2	0,75	HN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	34
3	1	HG	X	See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING	1
				See A030 IGNITION COIL	1
4	0,75	MN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	49
5	0,75	NR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	33

D81 – Coils and fuel injectors

1.6 16v

Wiring	Colour
See 55 COILS/ FUEL INJECTORS	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0.75	LN		See N70A INJECTOR ( COILS AND FUEL INJECTORS )	2
2	0.75	GV		See N70B INJECTOR ( ENGINE )	2
3	2.5	BN	X	See N70A INJECTOR ( COILS AND FUEL INJECTORS )	1
			X	See N70B INJECTOR ( ENGINE )	1
			X	See N70C INJECTOR ( ENGINE )	1
			X	See N70D INJECTOR ( COILS AND FUEL INJECTORS )	1
5	0.75	MV		See N70C INJECTOR ( ENGINE )	2
6	0.75	BV		See N70D INJECTOR ( COILS AND FUEL INJECTORS )	2

Wiring	Colour
See 55 COILS/ FUEL INJECTORS	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LN		See N70A INJECTOR ( COILS AND FUEL INJECTORS )	1
2		GV		See N70B INJECTOR ( ENGINE )	1
3		MB	X	See N70A INJECTOR ( COILS AND FUEL INJECTORS )	2
				See N70B INJECTOR ( ENGINE )	2
				See N70C INJECTOR ( ENGINE )	2
				See N70D INJECTOR ( COILS AND FUEL INJECTORS )	2
5		HV		See N70C INJECTOR ( ENGINE )	1
6		BV		See N70D INJECTOR ( COILS AND FUEL INJECTORS )	1

D81 – Engine

1.6 16v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0.75	LN		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	50
2	0.75	GV		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	34
3	2.5	MV		See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	32
5	0.75	MV		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	49
6	0.75	BV		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	33

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LN		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	71
2		GV		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	79
3		MB	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	18
				See A30 IGNITION 'COIL ( ENGINE )	2
				See J26 METHANE/LPG RELAY FEED ( ENGINE )	30
5		HV		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	78
6		BV		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	72
