Doblò - doblò cargo - doblò combi - bipower

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Dimensions › Doblò - doblò cargo - doblò combi - bipower

SpecificationsDoblò - doblò cargo - doblò combi - bipower

DOBLÒ - DOBLÒ CARGO - DOBLÒ COMBI - BIPOWER

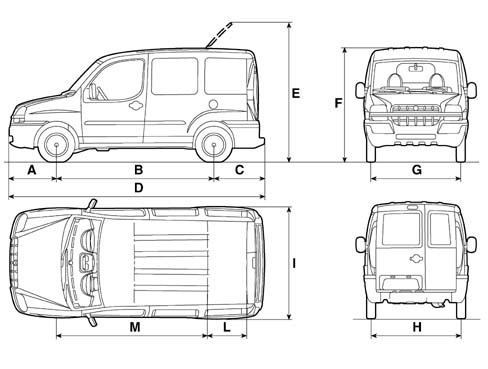

The dimensions are expressed in mm.

Height is measured with vehicle unladen.

Luggage capacity (V.D.A. standards): 3.2 m (Doblò Cargo versions)³

Luggage capacity (V.D.A. standards) (Doblò ELX-SX versions):

• in normal conditions: 750 dm³
• with rear bench completed folded over: 3000 dm³

	A	B	C	D	E	F	G (°)	H (°)	I	L	M
Normal wheelbase	758	2566	835	4159	2236	1800 * 1820 **	1490	1496	1714	454	2581

	A	B	C	D	E	F(*)	G(*)	H	I	L	M
Doblò CARGO short wheelbase (#)	833	2583	837	4253	2345	1831	1514	1505	1722	454	2591
Doblò CARGO short wheelbase HIGH ROOF (#)	833	2583	837	4253	- --	2086	1514	1505	1722	454	2591
Doblò CARGO LONG WHEELBASE (#)	833	2963	837	4633	- --	1817	1514	1505	1722	454	2591
Doblò People carrier (#)	833	2583	837	4253	2332	1818	1514	1505	1722	454	2591
Doblò People carrier HIGH ROOF (#)	833	2583	837	4253	- --	2073	1514	1505	1722	454	2591
Doblò COMBI (#)	833	2583	837	4253	2332	1818	1514	1505	1722	454	2591

(°) There may be minimal differences in measurements depending on the dimensions of the rims

(*) For the Fiat Doblò ELX – SX (high roof and low roof) - Fiat Doblò Combi (high roof and low roof) versions

(**) For the Fiat Doblò Cargo and Cargo SX versions (high roof and low roof)

(#) Restyling from 10/2005
