21 · General

A001 battery

Make: Fiat
Model: Doblò Factory Service Manual
Year: 2000–2010
Section: Starting - recharging › A001 battery

Connectors and pin-outsA001 battery

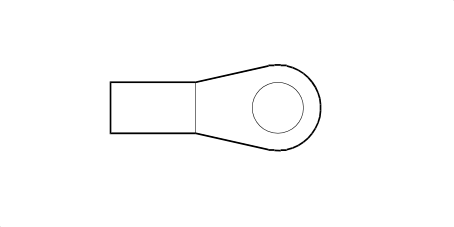

A001 BATTERY

A001A – Injection braid / engine services

1.3 JTD 16V · from 12/03 · MY 2005

Wiring	Colour
See 51 INJECTION BRIDGE / ENGINE SERVICES	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	R		See B037 SPARK PLUGS MAXI FUSE	1

A001A – Engine

1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 50 ENGINE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	R		See B037 SPARK PLUGS MAXI FUSE	1

1.6 16v · from 12/03 · BIPOWER, MY 2005

Wiring	Colour
See 50 ENGINE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	R		See B040 FUEL INJECTION SERVICES SUPPLY FUSE	1

A001B – Battery positive

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 41 BATTERY POSITIVE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See B001A JUNCTION UNIT (BATTERY POSITIVE)	1

A001C – Battery positive

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · BIPOWER, MY 2005

Wiring	Colour
See 41 BATTERY POSITIVE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	30	R		See A020A STARTER MOTOR (BATTERY POSITIVE)

A001D – Battery negative

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 40 BATTERY NEGATIVE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	16	N	X	See C002 BATTERY EARTH ON ENGINE	1
				See C003 BATTERY EARTH ON BODYSHELL	1

A1A – Engine

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	8	R		See B37 SPARK PLUGS (MAXI FUSE) FUSE ( ENGINE )	1

A1B – Battery positive

1.2 8v

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	30	R		See A20A STARTER MOTOR ( BATTERY POSITIVE )

1.9 DIESEL

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See A20A STARTER MOTOR ( BATTERY POSITIVE )

A1C – Battery positive

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See B1A ENGINE COMPARTMENT JUNCTION UNIT ( BATTERY POSITIVE )

A1D – Battery negative

1.2 8v

Wiring	Colour
See 40 BATTERY NEGATIVE

Cable		Destination
Sec.	Colour	Node	Connect.	Pin
16	N	x	See C1 BATTERY EARTH ( BATTERY NEGATIVE )
		x	See C040 ENGINE EARTH

1.9 DIESEL

Wiring	Colour
See 40 BATTERY NEGATIVE

Cable		Destination
Sec.	Colour	Node	Connect.	Pin
30	N	x	See C1 BATTERY EARTH ( BATTERY NEGATIVE )
		x	See C040 ENGINE EARTH

A1F – Radiator

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 11 RADIATOR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	8	N		See N11 ENGINE ELECTRIC FAN MOTOR ( RADIATOR )	2

1.2 8v, 1.6 16v, 1.9 DIESEL

Wiring	Colour
See 11 RADIATOR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See N11 ENGINE ELECTRIC FAN MOTOR ( RADIATOR )	1

1.2 8v · Climate control system

Wiring	Colour
See 11 RADIATOR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N		See N11 ENGINE ELECTRIC FAN MOTOR ( RADIATOR )	2

1.9 JTD 8V · Climate control system

Wiring	Colour
See 11 RADIATOR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See N11 ENGINE ELECTRIC FAN MOTOR ( RADIATOR )	2

A1H – Engine

1.3 JTD 16V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	N	X	See K31 WATER IN DIESEL FILTER SENSOR ( ENGINE )	2
				See K100 FUEL HEATING RESISTANCE AND TEMPERATURE SENSOR ( ENGINE )	4
				See M10B ENGINE MANAGEMENT ECU ( ENGINE )	1
				See M10B ENGINE MANAGEMENT ECU ( ENGINE )	2
				See M10B ENGINE MANAGEMENT ECU ( ENGINE )	3
				See M15A HEATER PLUGS CONTROLUNIT ( ENGINE )	1
