J026 methane/LPG relay feed

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Relays › J026 methane/LPG relay feed

Connectors and pin-outsJ026 methane/LPG relay feed

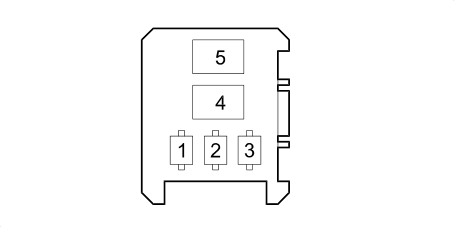

J026 METHANE/LPG RELAY FEED

1.6 16v · from 12/03 · BIPOWER, MY 2005

Wiring	Colour
See 50 ENGINE	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BL		See M019B METHANE INJECTION CONTROL UNIT (ENGINE)	74
2	2,5	BN		See D004A FRONT/ENGINE JUNCTION (FRONT)	A
3	0,75	LN	X	See B001F JUNCTION UNIT (INJECTION BRAID / ENGINE SERVICES)	30
				See M019B METHANE INJECTION CONTROL UNIT (ENGINE)	80
				See M019B METHANE INJECTION CONTROL UNIT (ENGINE)	66
				See M019B METHANE INJECTION CONTROL UNIT (ENGINE)	59
				See N072A METHANE INJECTOR (ENGINE)	2
				See N072B METHANE INJECTOR (ENGINE)	2
				See N072C METHANE INJECTOR (ENGINE)	2
				See N072D METHANE INJECTOR (ENGINE)	2
5	2,5	MB	X	See D081 INJECTOR COUPLING	3
				See B001F JUNCTION UNIT (INJECTION BRAID / ENGINE SERVICES)	18
				See A030 IGNITION COIL	2

J26 – Engine

1.6 16v

Wiring	Colour
See 50 ENGINE	marrone

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
30		MB	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	18
				See A30 IGNITION 'COIL ( ENGINE )	2
				See D81 INJECTOR JUNCTION ( COILS AND FUEL INJECTORS )	3
85		BL		74
86	1	LN	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	30
				See M19B METHANE INJECTION CONTROL UNIT ( ENGINE )	59
				See M19B METHANE INJECTION CONTROL UNIT ( ENGINE )	80
				See M19B METHANE INJECTION CONTROL UNIT ( ENGINE )	66
				See N72A METHANE INJECTOR ( ENGINE )	2
				See N72B METHANE INJECTOR ( ENGINE )	2
				See N72C METHANE INJECTOR ( ENGINE )	2
				See N72D METHANE INJECTOR ( ENGINE )	2
		BN		See D4A FRONT/ENGINE COUPLING ( FRONT )

Wiring	Colour
See 50 ENGINE	marrone

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
30		MB	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	18
				See A30 IGNITION 'COIL ( ENGINE )	2
				See D81 INJECTOR JUNCTION ( COILS AND FUEL INJECTORS )	3
85		BL		See M19B METHANE INJECTION CONTROL UNIT ( ENGINE )	74
86	1	LN	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	30
				See M19B METHANE INJECTION CONTROL UNIT ( ENGINE )	59
				See M19B METHANE INJECTION CONTROL UNIT ( ENGINE )	80
				See M19B METHANE INJECTION CONTROL UNIT ( ENGINE )	66
				See N72A METHANE INJECTOR ( ENGINE )	2
				See N72B METHANE INJECTOR ( ENGINE )	2
				See N72C METHANE INJECTOR ( ENGINE )	2
				See N72D METHANE INJECTOR ( ENGINE )	2
		BN		See D4A FRONT/ENGINE COUPLING ( FRONT )
