AUTOMATIC TRANSMISSION - WIRING DIAGRAM

1.9 JTD 16V, 2.4 JTD 20V

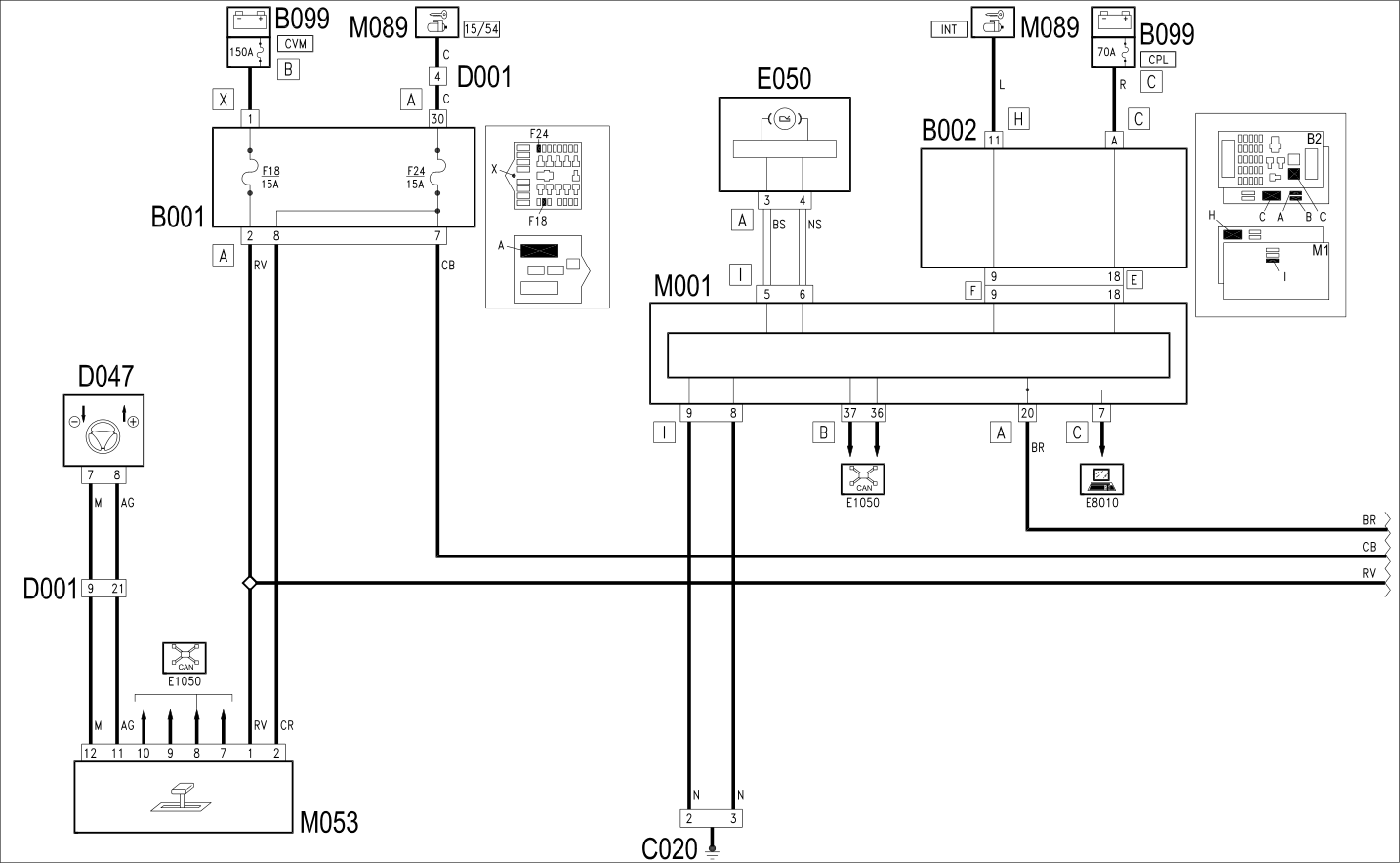

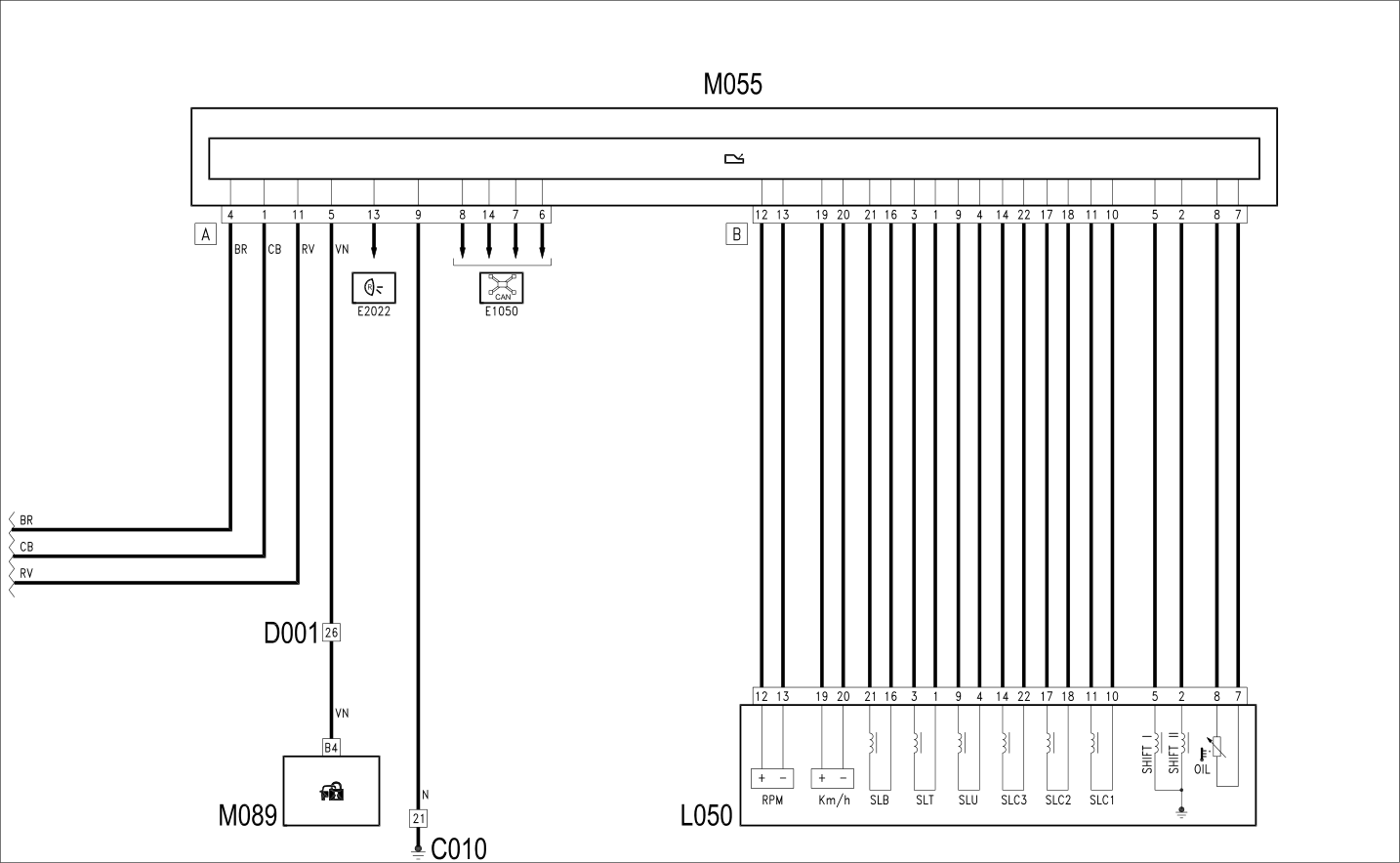

WIRING DIAGRAM

COMPONENTS

Component code	Description	With reference to the assembly
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C010	LEFT FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D047	CLOCK SPRING COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
L050	AUTOMATIC TRANSMISSION SOLENOID VALVES
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M053	AUTOMATIC TRANSMISSION GEAR SELECTOR CONTROL UNIT
M055	AUTOMATIC TRANSMISSION CONTROL UNIT
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
