Connect - wiring diagram

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Instrument panel › Connect - wiring diagram

Wiring diagrams and electrical functionsConnect - wiring diagram

CONNECT - WIRING DIAGRAM

Connect Nav+

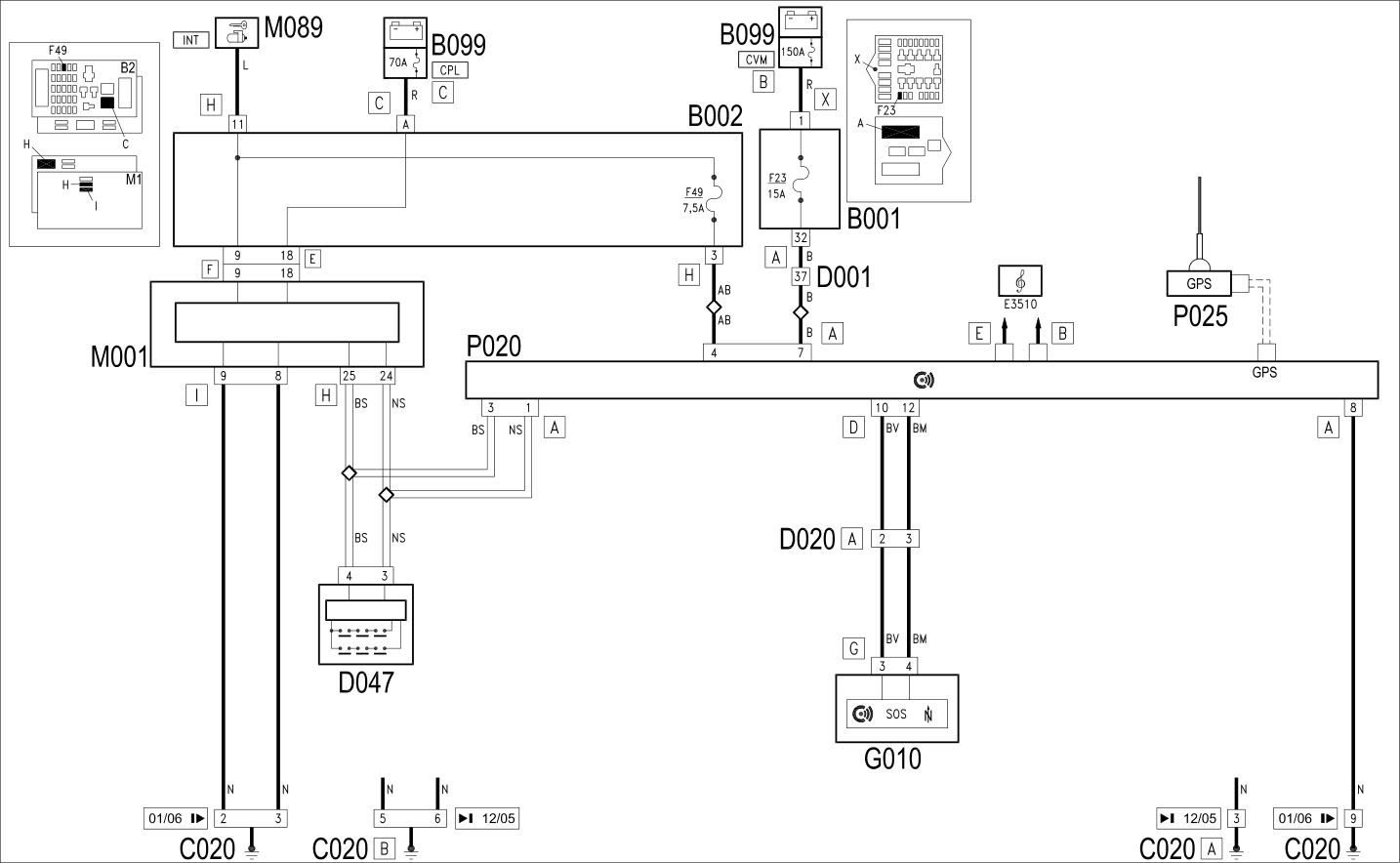

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D020	DASHBOARD/REAR COUPLING
D047	CLOCK SPRING COUPLING
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
P020	RADIO	Op. 5580P12 CONNECT PANEL REPLACE
P025	AERIAL POWER SUPPLY	Op. 5570T27 AERIAL SUPPORT - R.R
