Sun roof - wiring diagram
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Electrically activated devices › Sun roof - wiring diagram
Wiring diagrams and electrical functionsSun roof - wiring diagram
SUN ROOF - WIRING DIAGRAM

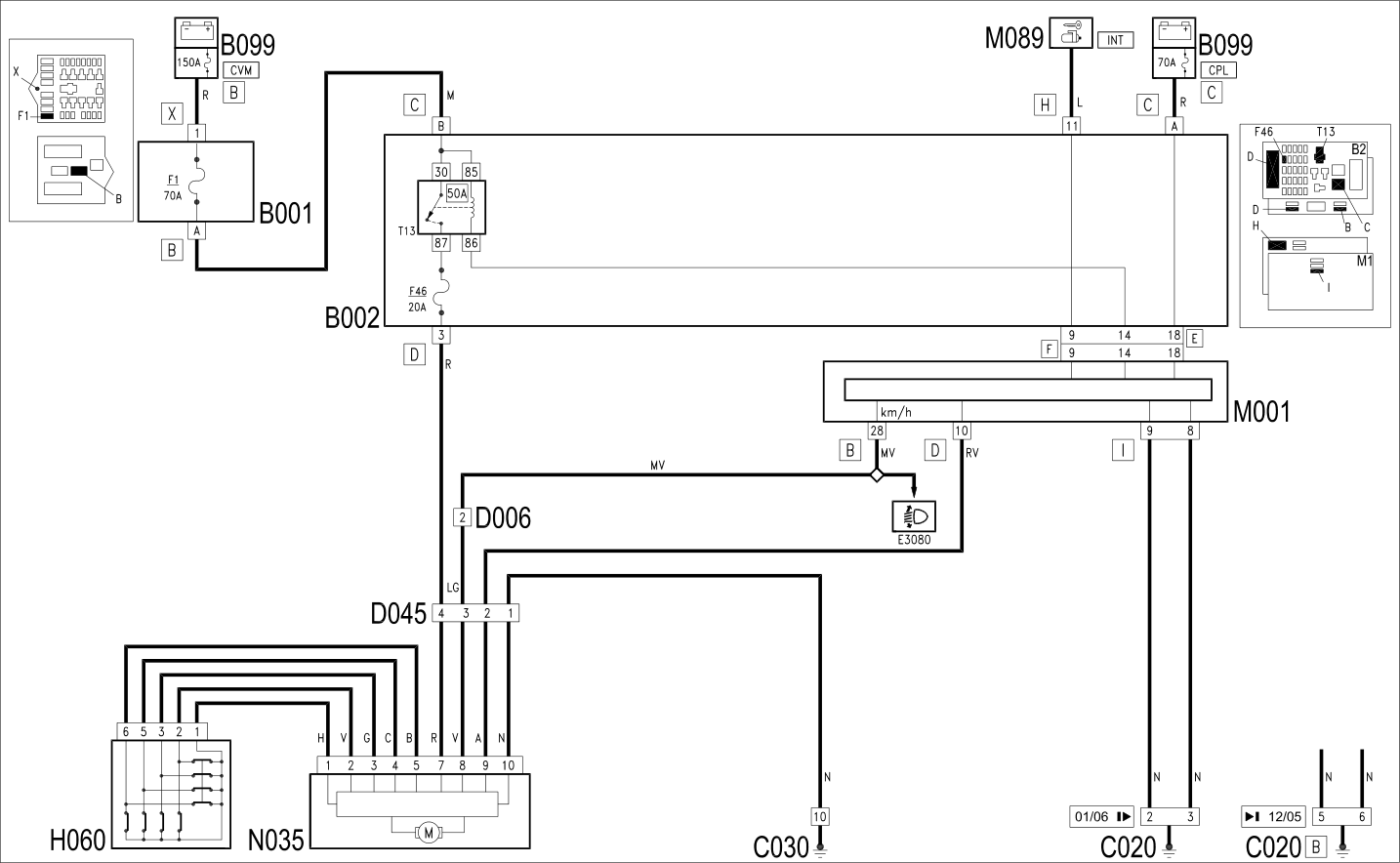

WIRING DIAGRAM
COMPONENTS
| Component code | Description | Reference to the operation |
|---|---|---|
| B001 | JUNCTION UNIT | Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R. |
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| B099 | MAXIFUSE BOX ON BATTERY | Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| C030 | LEFT REAR EARTH | |
| D045 | SUN ROOF COUPLING | |
| H060 | SUN ROOF SWITCH | |
| 7030B64 | SUN ROOF CONTROL SWITCH - R+R | See M001 BODY COMPUTER |
| Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. | See M089 STEERING LOCK CONTROL UNIT (NBS) | |
| op. 5580E17Vedere N035 MOTORINO TETTO APRIBILE | Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R |
