H060 sun roof switch
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Manual electric controls › H060 sun roof switch
Connectors and pin-outsH060 sun roof switch

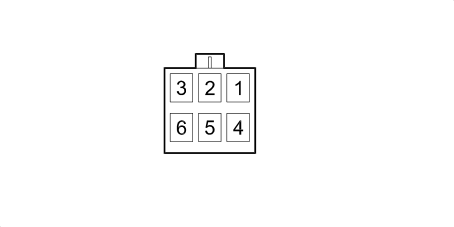

H060 SUN ROOF SWITCH
| Wiring | Colour |
|---|---|
| See 71 SUN ROOF BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | H | See N035 SUN ROOF MOTOR | 1 | ||
| 2 | V | See N035 SUN ROOF MOTOR | 2 | ||
| 3 | G | See N035 SUN ROOF MOTOR | 3 | ||
| 5 | C | See N035 SUN ROOF MOTOR | 4 | ||
| 6 | B | See N035 SUN ROOF MOTOR | 5 | ||
