Horns - component location

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Electrically activated devices › Horns - component location

Wiring diagrams and electrical functionsHorns - component location

HORNS - COMPONENT LOCATION

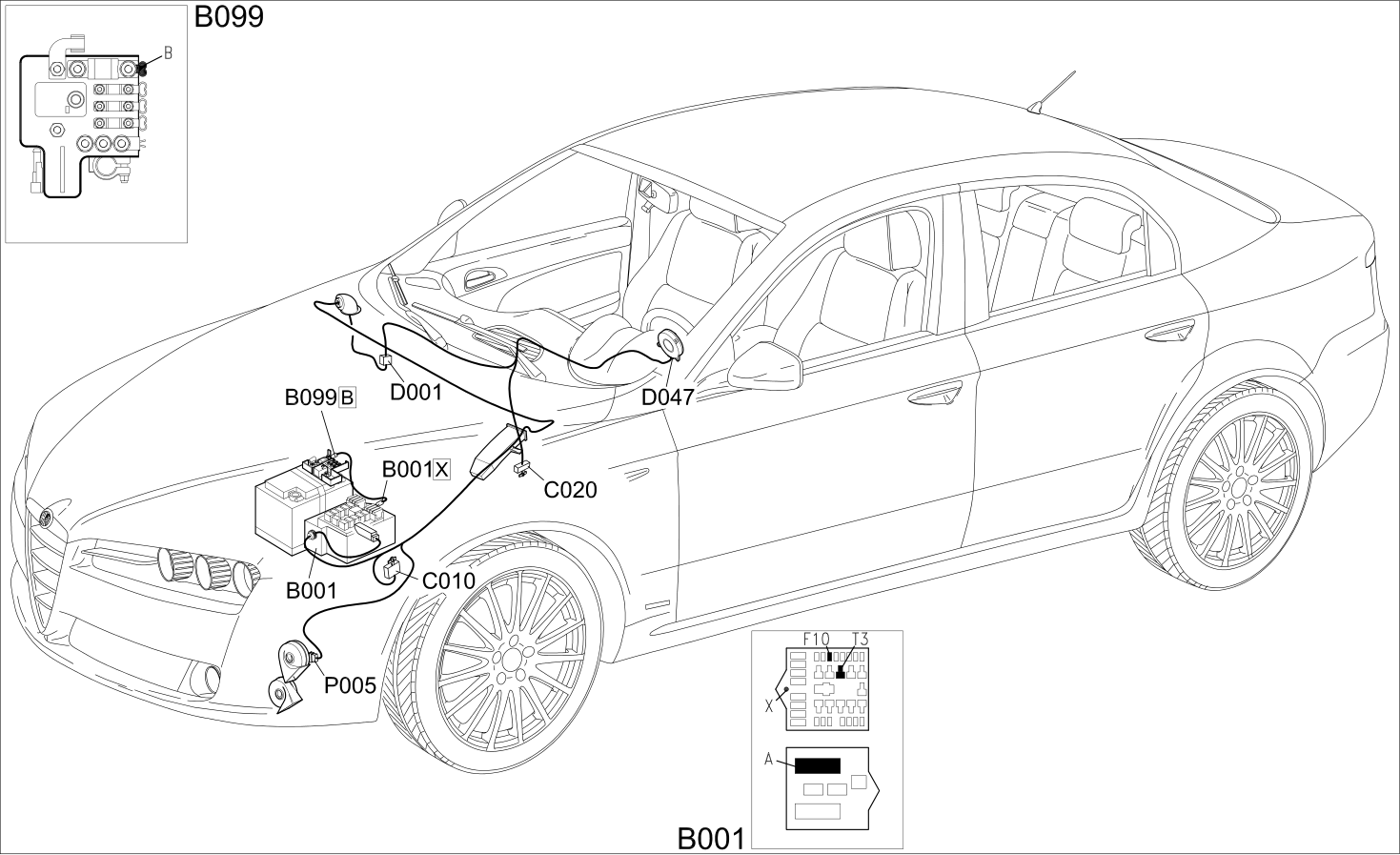

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C010	LEFT FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D047	CLOCK SPRING COUPLING	Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R
P005	SINGLE-TONE HORN	Op. 5550B30 L/H OR R/H HORN (ONE) - R+R

20 Electrical
