Heated seats - component location

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Electrically activated devices › Heated seats - component location

Wiring diagrams and electrical functionsHeated seats - component location

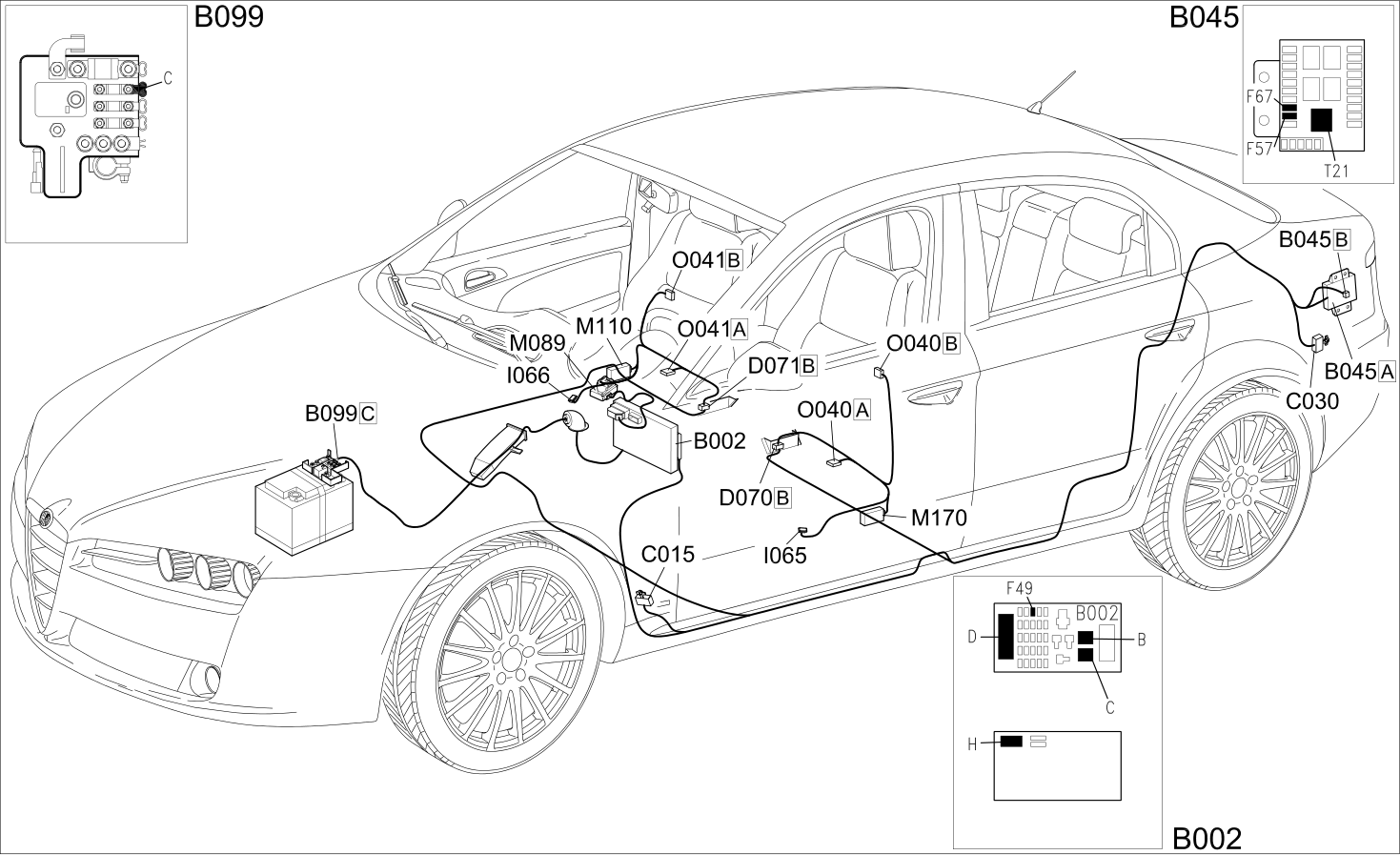

HEATED SEATS - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B045	LUGGAGE COMPARTMENT JUNCTION UNIT (CVB)	Op. 5505A14 SUPPLEMENTARY JUNCTION BOX IN LUGGAGE COMPARTMENT - R.R
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C030	LEFT REAR EARTH
D020	DASHBOARD/REAR COUPLING
D070	DRIVER'S SEAT COUPLING
7045A10	FRONT SEAT (ONE), LEFT OR RIGHT - R.R.
D071	PASSENGER SEAT COUPLING
7045A10	FRONT SEAT (ONE), LEFT OR RIGHT - R.R.
I065	DRIVER'S SEAT HEATING SWITCH	See I066 PASSENGER SEAT HEATING SWITCH
M089	STEERING LOCK CONTROL UNIT (NBS)
5580E17	STEERING LOCK - R.R
Vedere M110 CENTRALINA RISCALDATORE SEDILE ANTERIORE PASSEGGEROVedere O040 RISCALDATORE SEDILE SINSITRO
Vedere M170 CENTRALINA RISCALDATORE SEDILE ANTERIORE LATO GUIDAVedere O041 RISCALDATORE SEDILE LATO PASSEGGERO
