AIR CONDITIONER - COMPONENT LOCATION

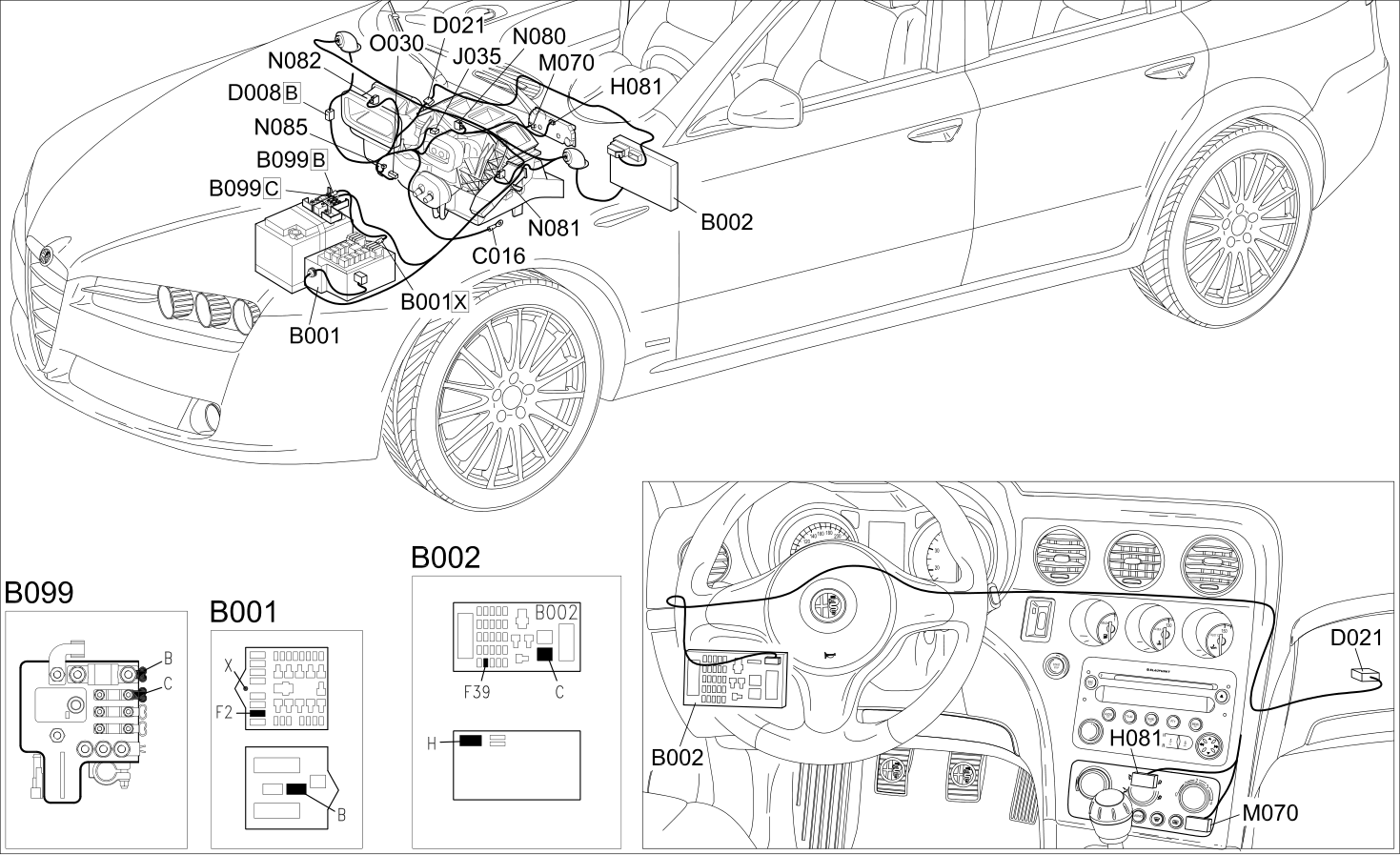

Manual Air Conditioning

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C016	AIR CONDITIONING UNIT EARTH
D008	AIR CONDITIONING-HEATER FRONT COUPLING
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
H081	CLIMATE CONTROL FAN CONTROL
J035	PASSENGER COMPARTMENT AIR FAN RELAY
M070	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D18 AIR CONDITIONING CONTROL UNIT - R.R.
N080	AIR DISTRIBUTION FLAP ACTUATOR
N081	MIXTURE FLAP ACTUATOR
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
O030	PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR

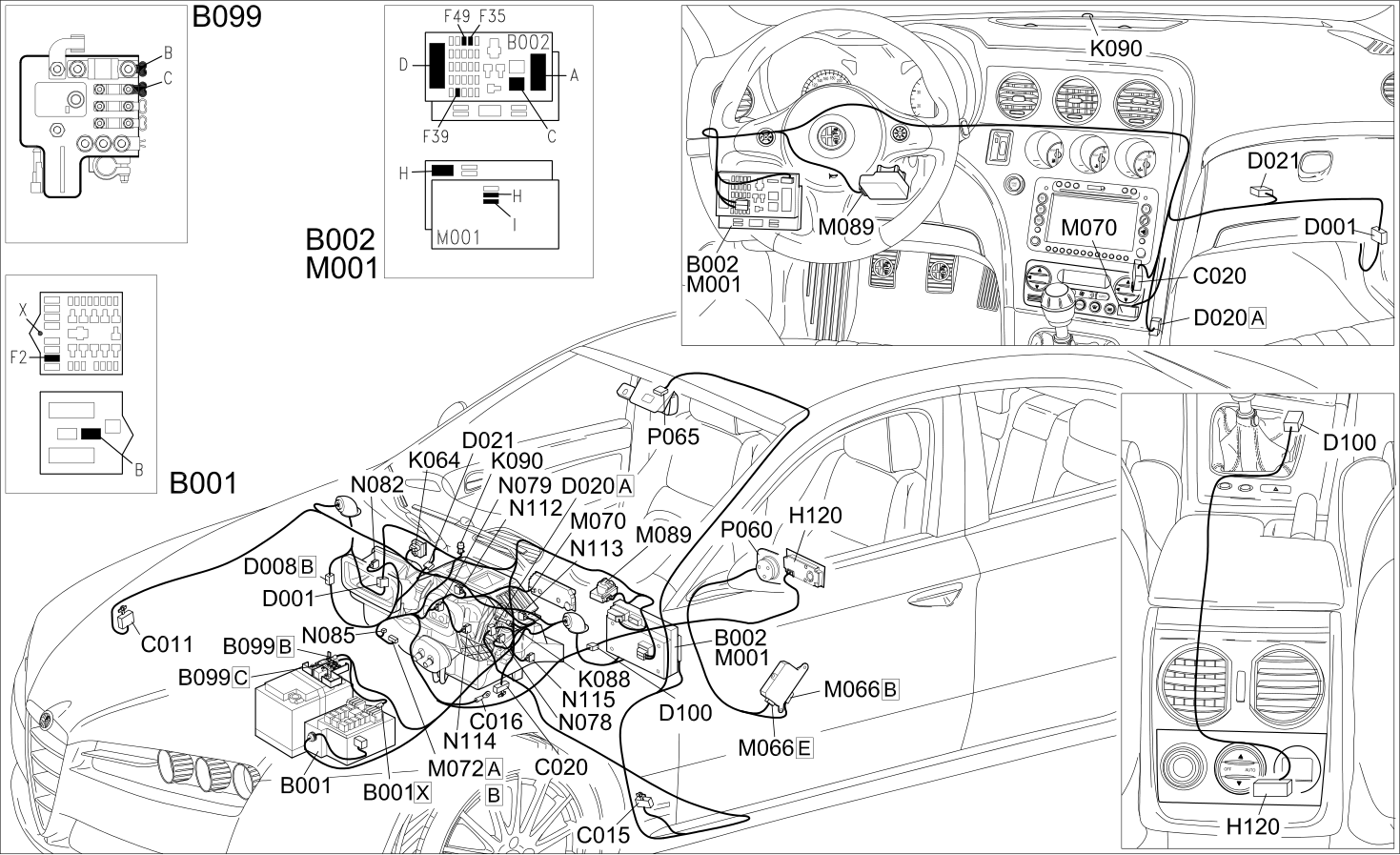

Automatic Air Conditioning

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C011	RIGHT FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D008	AIR CONDITIONING-HEATER FRONT COUPLING
D020	DASHBOARD/REAR COUPLING
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
D100	CENTRE CONSOLE / CLIMATE CONTROL UNIT COUPLING
H120	PASSENGER COMPARTMENT VENTILATION CONTROL
5040D19	CONTROL UNIT WITH CONTROL PANEL FOR REAR AIR CONDITIONING - R.R.	See K064 EXHAUST GAS PRESENCE SENSOR
5010D72	AIR QUALITY SENSOR - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK	See K088 UPPER MIXED AIR TEMPERATURE SENSOR
5010D20	MIXED AIR TEMPERATURE SENSOR - R+R FOLLOWING ELECTRICAL WIRING CHECK OPERATION	See K090 SOLAR SENSOR
5010D56	SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK	See M001 BODY COMPUTER
Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.		See M066 DRIVER'S DOOR CONTROL UNIT (NPG)
5505A43	CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED	See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT
5040D18	AIR CONDITIONING CONTROL UNIT - R.R.	See M072 FAN SPEED VARIATOR
5040C44	FAN MOTOR ELECTRONIC VARIATOR - R+R	See M089 STEERING LOCK CONTROL UNIT (NBS)
5580E17	STEERING LOCK - R.R
N078	LEFT MIXED AIR FLAP ACTUATOR	Op. 5040D84 AIR CONDITIONING LEFT AIR MIXTURE FLAP CONTROL MOTOR - R.R
N079	RIGHT MIXED AIR FLAP ACTUATOR	Op. 5040D86 AIR CONDITIONING RIGHT AIR MIXTURE FLAP CONTROL MOTOR - R.R
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
N112	RIGHT AIR DISTRIBUTION ACTUATOR	Op. 5040D96 AIR CONDITIONING RIGHT UPPER DISTRIBUTION FLAP MOTOR (DEFROST) - R.R
N113	LEFT AIR DISTRIBUTION ACTUATOR	Op. 5040D94 AIR CONDITIONING LEFT UPPER AIR DISTRIBUTION FLAP MOTOR (DEFROST) - R.R
N114	REAR AIR DISTRIBUTION ACTUATOR	Op. 5040D82 AIR CONDITIONING LOWER AIR DISTRIBUTION FLAP CONTROL MOTOR - R.R.
N115	REAR AIR MIXTURE FLAP ACTUATOR	Op. 5040D93 MOTOR CONTROLLING THREE ZONE AUTOMATIC AIR CONDITIONER REAR SEAT AIR MIXING FLAP R R Op. 7005R30 ELECTRICALLY CONTROLLED DOOR MIRROR (ONE) - R+R
Vedere P060 SPECCHIO RETROVISORE ESTERNO SINISTROVedere P065 SPECCHIO RETROVISORE INTERNO ELETTROCROMICO		Op. 7065C60 INTERIOR REAR VIEW MIRROR FOR VERSIONS WITH RAIN/DUSK SENSOR - R.R.
