P075 cd player/changer
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Various consumers › P075 cd player/changer
Connectors and pin-outsP075 cd player/changer

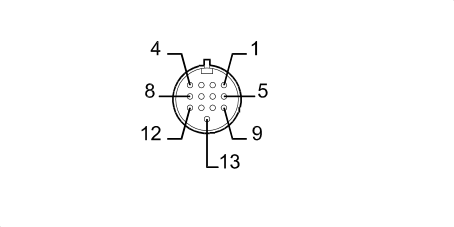

P075 CD PLAYER/CHANGER
| Wiring | Colour |
|---|---|
| See 79 CHANGE CD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | R | See D096 CD CHANGER CABLE INTERMEDIATE COUPLING | 4 | |
| 2 | 1 | G | See D096 CD CHANGER CABLE INTERMEDIATE COUPLING | 3 | |
