E4021 Speedometer (RH drive adaptation)

Description

The module includes

• electronic speedometer
• milometer and trip meter / outside temperature gauge;
• and a series of warning lights.

The speedometer signal comes from the ABS control unit; there are three 'repeater' outputs of the signal for other systems; only two are used for the electronic fuel injection and climate control system. The gauge display is produced by an electronic circuit inside the module.

The milometer consists of an LCD which simultaneously displays the total and trip mileage.

A special button zeros the trip meter and allows the outside temperature to be displayed. For greater detail, see Characteristic of working principle 5560 Instruments .

The outside temperature reading comes from the climate control unit Characteristic of working principle 5040 Air conditioner box and components .

The button is on the left of the instruments, together with the instrument light adjustment button and the headlamp alignment control.

The following warning lights are contained in this module:

• seat belts
• brake pad wear
• maximum catalytic converter temperature (preparation)
• heater plugs
• passenger Air Bag disabling
• water in diesel filter

In a version available in some markets, there is also a 'seat belts fastened' warning light; the warning light goes out when the driver's seat buckle is inserted in its fastening.

The brake pad warning light comes on for about 4 seconds, when the ignition is switched ON, to check that they are working properly, then it goes out.

The electronic circuits inside the module also manage the test function for the warning lights of all the modules: Wiring diagram E4040 WARNING LIGHTS CHECK .

The operation of the warning lights which are not included in other functions is illustrated; the others are described and illustrated in the diagrams dealing with the components to which they refer.

The speedometer operates when the ignition is switched ON.

In the 'night' conditions (side lights on), the brightness can be adjusted to three levels by an external button. Wiring diagram E2530 INSTRUMENT LIGHTING

Description of operation

r

The supply to the speedometer module E10 reaches pin 9 of connector A directly from the battery (maxifuse J/B1of B5), via fuse F10 of the junction unit B1; the supply controlled by the ignition (INT) reaches pin 10 of connector A from the line protected by fuse B11.

s

The supply to the speedometer module E10 reaches pin 9 of connector A directly from the battery (maxifuse J/B1of B99), via fuse F10 of the junction unit B1; the supply controlled by the ignition (INT) reaches pin 10 of connector A from the line protected by fuse F4 of the additional fuse box B98B.

Pin 1 of connector A is earthed.

The ABS control unit M50 sends the speedometer signal to pin 11 of connector A of E10.

The speedometer signal is sent again from pin 15 of connector A to the engine control unit M10, which differs for the various versions and from pin 16 of connector A towards the climate control unit M70.

u

The same signal is sent from pin 14 of connector A to the automatic transmission control unit M54.

Pin 7 of connector A of E10 receives the signal for the outside temperature from the climate control unit M70.

The zeroing signal for the trip meter reaches pin 12 of connector B from H10.

The switch H10 has ideograms lit up when the side lights are switched on through the line coming from the switch for the steering column switch unit H5. Wiring diagram E2530 INSTRUMENT LIGHTING .

The earth signals which provide information on the state of wear of the brake pads, coming from sensors K20 and K21 reach pin 11 of connector B.

On a version available on some markets, pin 5 of connector B of E10 receives the earth signal from the switch l45, located on the driver's seat anchorage, which indicates that the belt is fastened.

For all the other warning lights, refer to the diagrams relating to the components to which they refer.

The water in diesel filter sensor K31 is supplied by the line of maxifuse EFI of B99, and sends an earth signal to pin 13 of connector A of the speedometer module E10 when a certain level of humidity is detected in the diesel filter.

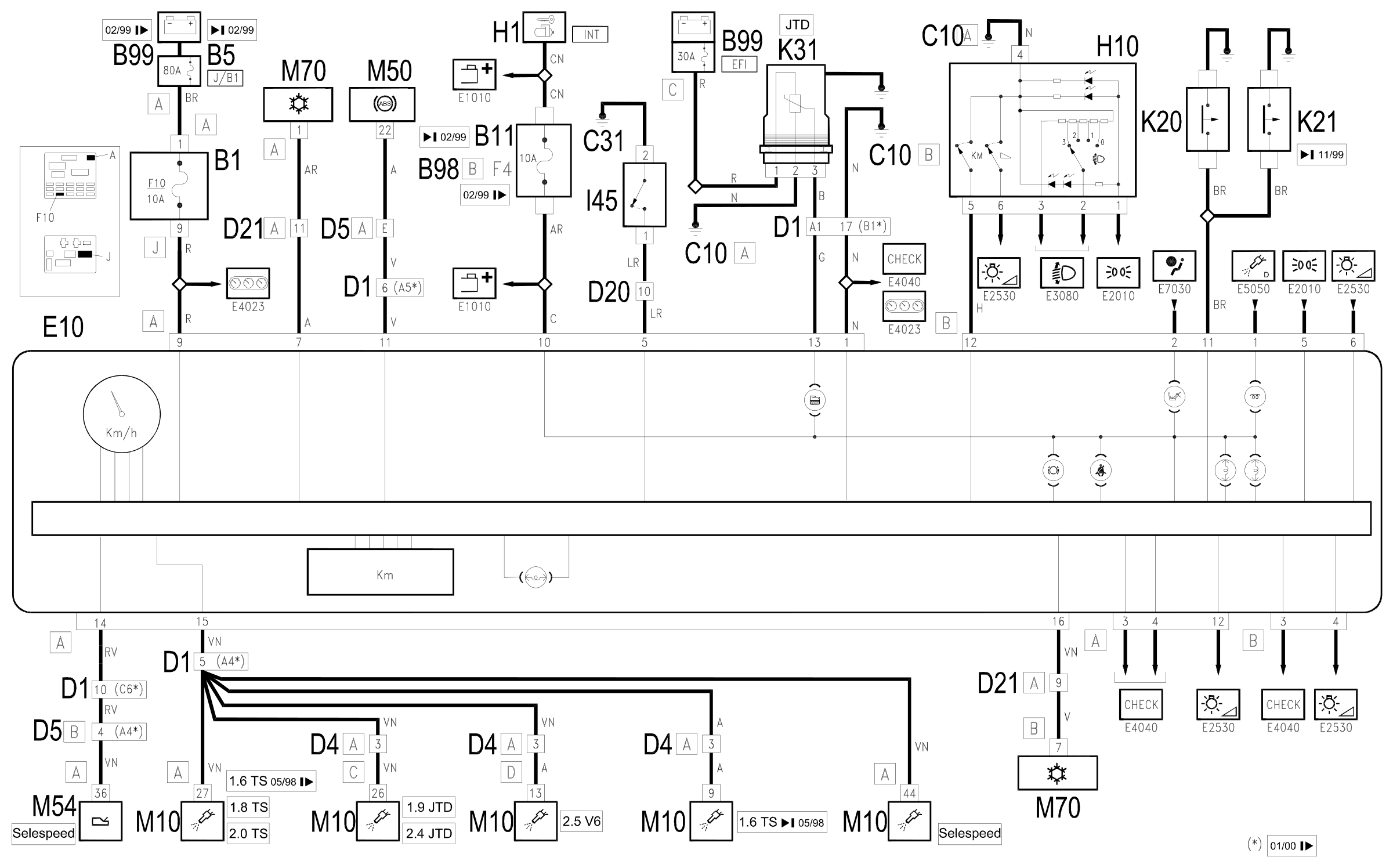

Wiring diagram

Components

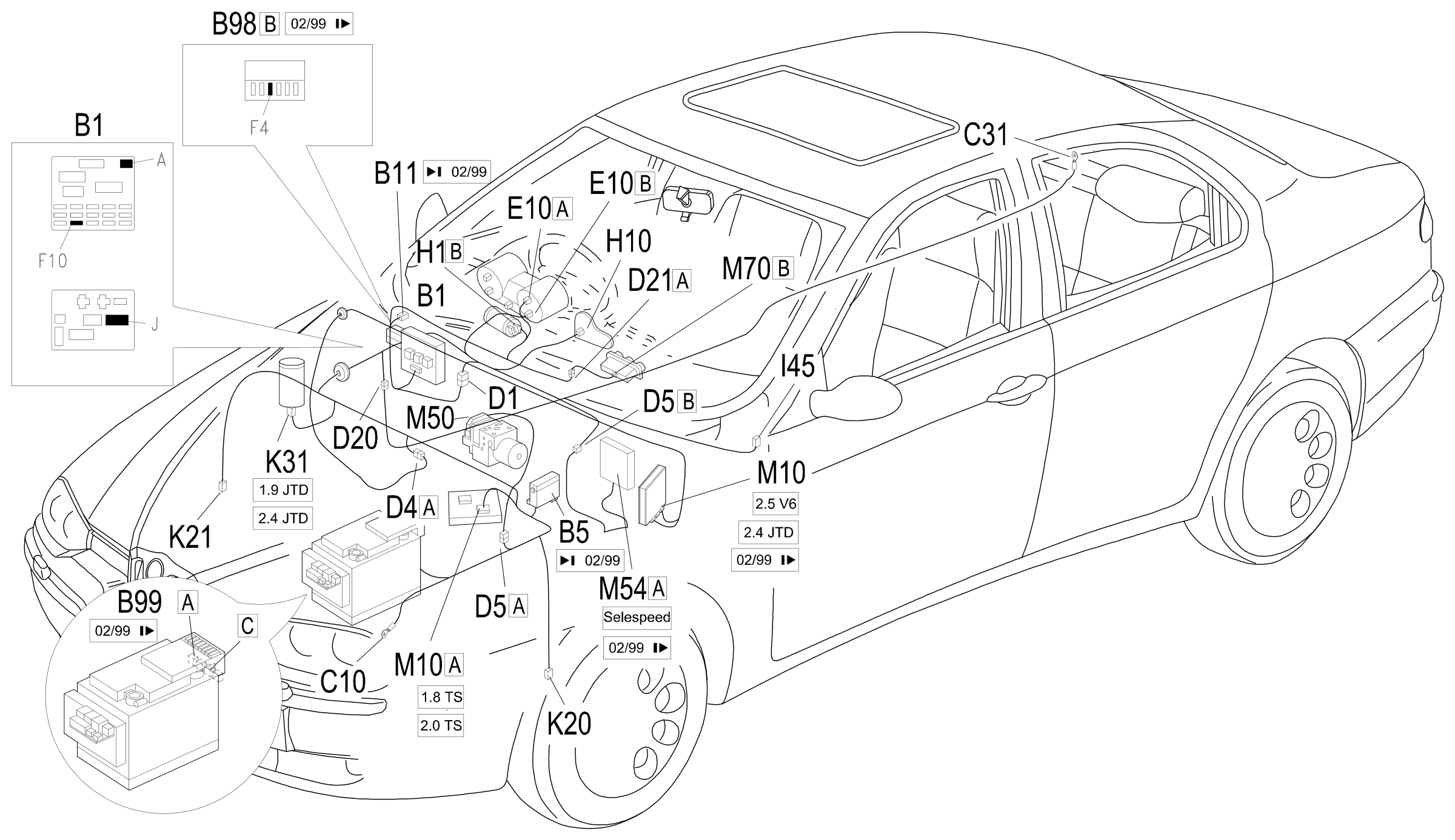

Component location
