D87 Left tailgate rear coupling/

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Intermediate junctions › D87 Left tailgate rear coupling/

Connectors and pin-outsD87 Left tailgate rear coupling/

D87 Left tailgate rear coupling/

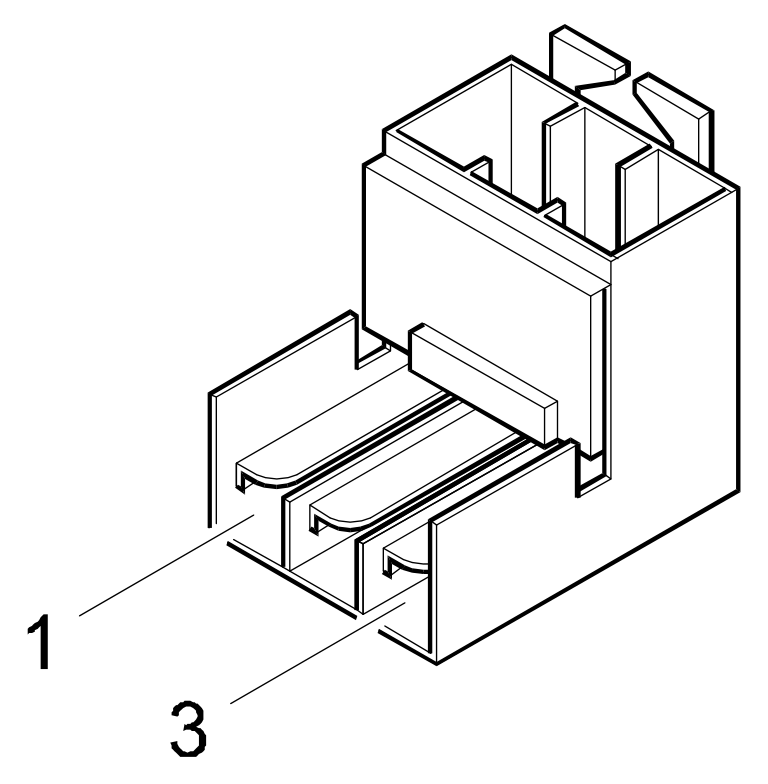

Connector D87 – left tailgate harness (black) – S.W.

Pin	mm²	Colour		To
1		RG	red/yellow	G41 pin 1
2	1.0	RN	red/black	F40 pin 1
3	1.0	BN	white/black	F35 pin 2
4	2.5	M	brown	P55B
5	1.0	MB	brown/white	F35 pin 3
7		R	red	G41 pin 2 I11 pin 1
8	1.5	V	green	N16 pin 2
9	1.5	ZN	violet/black	F35 pin 1 F40 pin 2 N16 pin 3 I11 pin 3
10	1.5	CL	orange/blue	N16 pin 1

Connector D87 – rear harness (black) – S.W.

Pin	mm²	Colour		To
1	0.5	RG	red/yellow	G40 pin 3
2	1	RN	red/black	B01E pin 14
3	1	BN	white/black	B01G pin 6
4	2.5	MN	brown/black	D30 pin 27 D31 pin 27 G1E pin 4
5	1	MB	brown/white	D06A pin B1
7	0.5	R	red	G40 pin 2 D06A pin C7 D20 pin 38
8	1.5	V	green	D20 pin 9
9	1.5	ZN	violet/black	C30
10	1.5	CL	orange/blue	D20 pin 8

Wiring diagrams

• E2021
• E2022
• E2031
• E2520
• E3021
• E3030
• E7015
