G40 Boot courtesy light

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Interior lighting › G40 Boot courtesy light

Connectors and pin-outsG40 Boot courtesy light

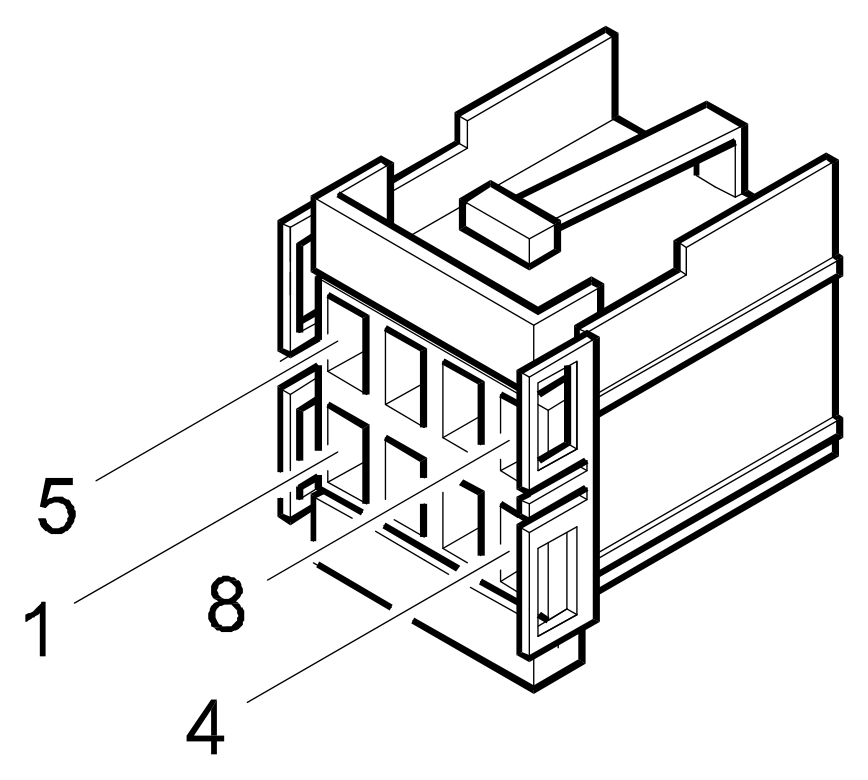

G40 Boot courtesy light

Connector G40 – rear harness (white) – up to 01/00

Pin	mm²	Colour		To
1		RG	red/yellow	D20 pin 40
2		R	red	D20 pin 38 D6A pin 20 D40 pin 4

Connector G40 – rear harness (white) – from 01/00

Pin	mm²	Colour		To
1		RG	red/yellow	D20 pin 40
2		R	red	D20 pin 38 D6A pin C7 D40 pin 4

Wiring diagrams

• E2520
