I11 Boot opening switch

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Switches › I11 Boot opening switch

Connectors and pin-outsI11 Boot opening switch

I11 Boot opening switch

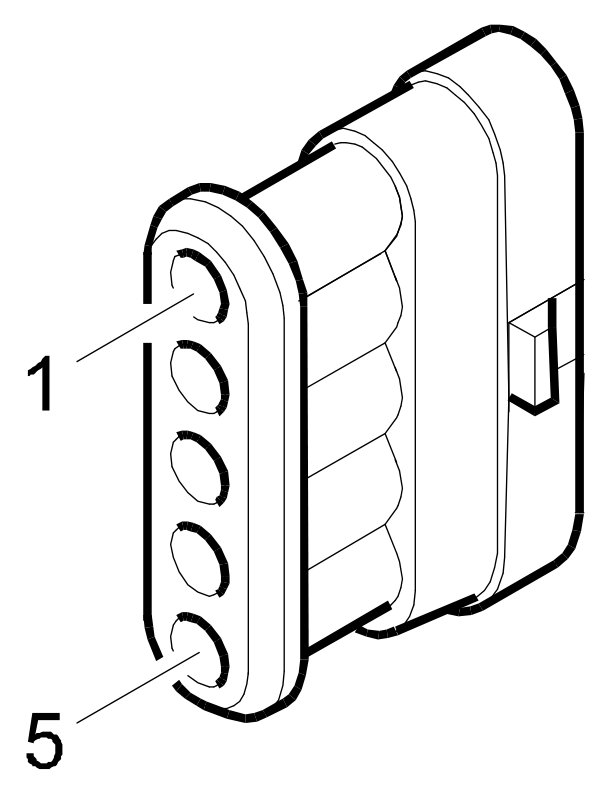

Connector I11 – boot harness (white)

Pin	mm²	Colour		To
1	1.0	MB	brown/white	D40 pin 4
3	1.0	N	black	D40 pin 7

Connector I11 – left tailgate harness (white) – S.W.

Pin	mm²	Colour		To
1	1	R	red	D87 pin 7 G41 pin 2
3	1	ZN	violet/black	D87 pin 9 F35 pin 1 F40 pin 2 N16 pin 3

Wiring diagrams

• E2520
• E4022
• E7015
