P55 Heated rear windscreen

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Users › P55 Heated rear windscreen

Connectors and pin-outsP55 Heated rear windscreen

P55 Heated rear windscreen

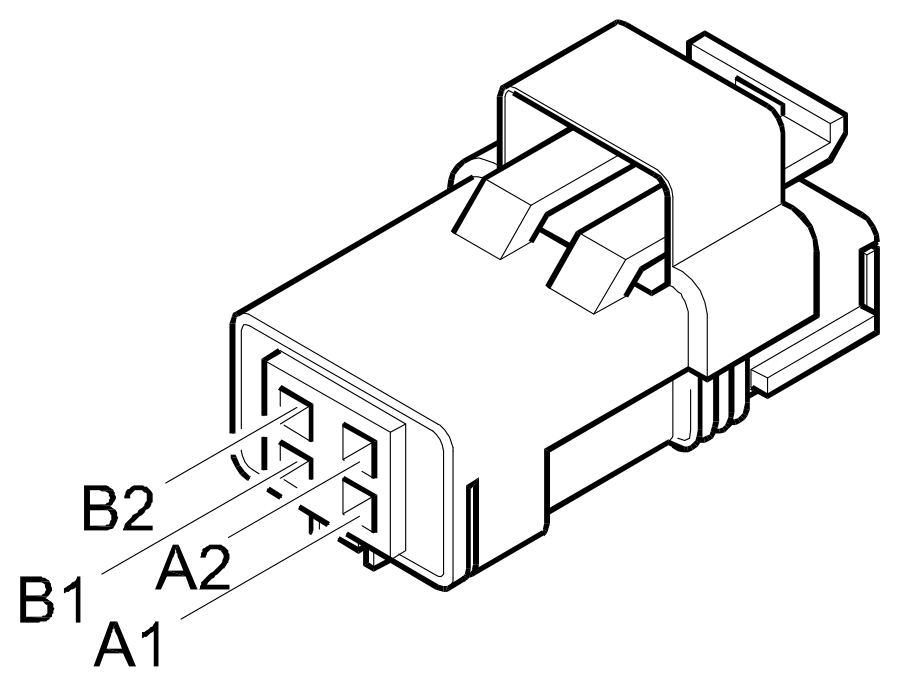

Connector P55

Connector P55 – rear window negative harness (black)

Pin	mm²	Colour		To
1	2.5	N	black	C32 pin @

Connector P55A – right tailgate harness (black)

Pin	mm²	Colour		To
1	2.5	NZ	black/violet	D88 pin 6

Connector P55B – left tailgate harness (black)

Pin	mm²	Colour		To
1	2.5	M	brown	D87 pin 4

Wiring diagrams

• E3030

14 General
