D83 I.e. / transmission connection

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Intermediate junctions › D83 I.e. / transmission connection

Connectors and pin-outsD83 I.e. / transmission connection

D83 I.e. / transmission connection

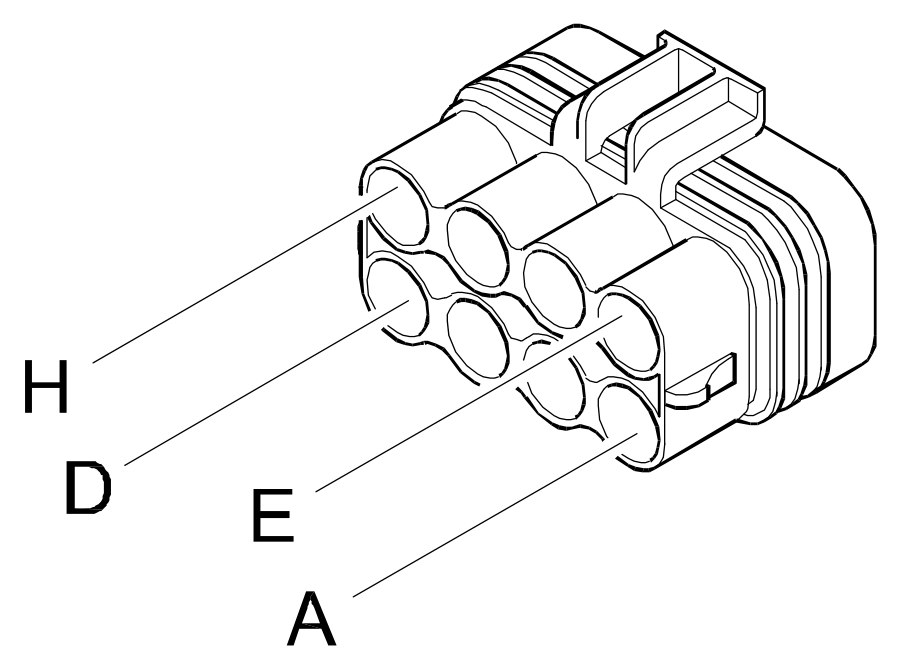

Connector D83 – engine harness (black) – Q-System

Pin	mm²	Colour		To
1		HB	grey/white	M10D pin 11
2		HG	grey/yellow	M10D pin 12

Connector D83 – abs harness (white) – Q-System

Pin	mm²	Colour		To
1		HB	grey/white	M55B pin 11
2		HG	grey/yellow	M55B pin 9

Wiring diagrams

• E7050
