D4 Front / engine coupling

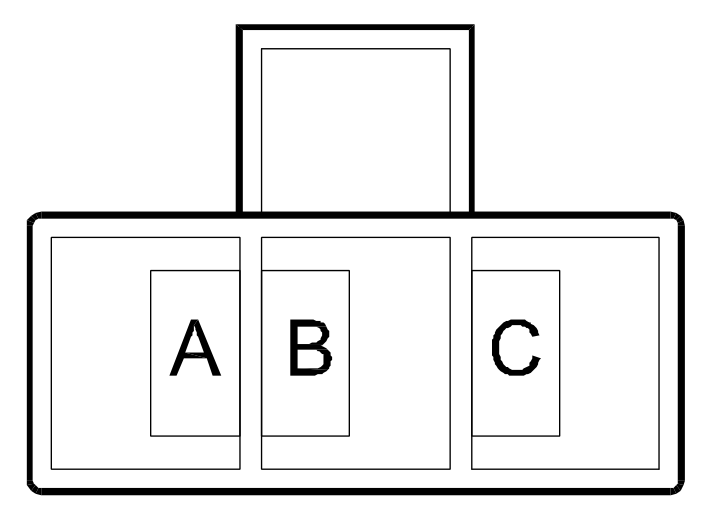

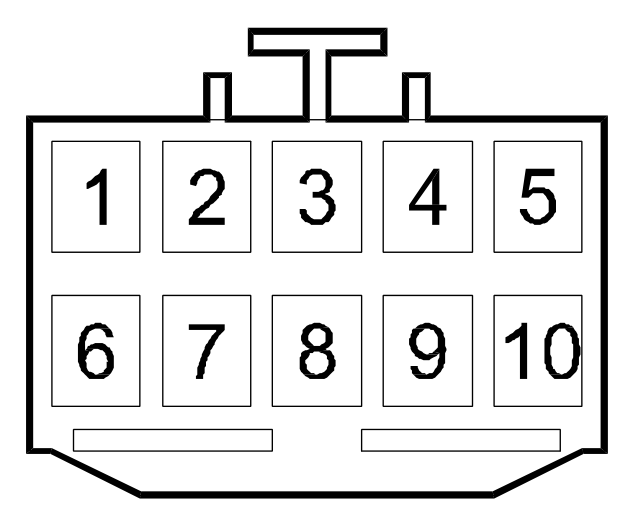

Connector D4 – front harness (black)

Pin	mm²	Colour		To
1	1.5	RV	red/green	B01C pin 18
2		HG	grey/yellow	M10A pin 60
5	1.0	MN	brown/black	B01C pin 4
8		HN	grey/black	M01A pin 19
9	1.5	L	blue	B01C pin 7 K41 pin 2
10	1.5	M	brown	B01C pin 19

Connector D4 – front harness (black) – Selespeed

Pin	mm²	Colour		To
1	1.5	RV	red/green	B01C pin 18
2		HG	grey/yellow	M10A pin 60
5	1.0	MN	brown/black	B01C pin 4
8		HN	grey/black	M01A pin 19
9	1.5	L	blue	B01C pin 7 K41 pin 2
10	1.5	M	brown	J05 pin 4

Connector D4 – engine harness (black)

Pin	mm²	Colour		To
1	1.5	V	green	A30A pin 2 A30B pin 2 A30C pin 2 A30D pin 2 N70A pin 1 N70B pin 1 N70C pin 1 N70D pin 1
2		HG	grey/yellow	K30
5	1.0	V	green	L20 pin .
8	1.0	H	grey	A10A
9	1.5	L	blue	K15 pin 4 K16 pin 4 K17 pin 4 L10 pin 1 L15 pin 2 N76 pin 1
10	1.5	RN	red/black	A20B

Wiring diagrams

• E5010
• E5030
• E6021
