J5 Starting enablement relay

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Relays › J5 Starting enablement relay

Connectors and pin-outsJ5 Starting enablement relay

J5 Starting enablement relay

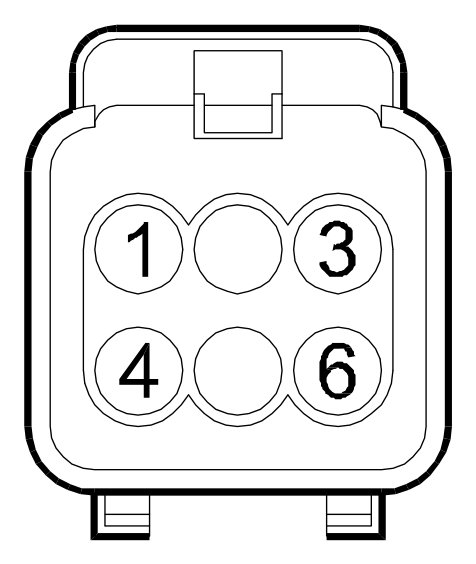

Connector J5 – front harness (black)

Pin	mm²	Colour		To
1	1.5	MR	brown/red	M54B pin 76 H01A pin 3
2		LN	blue/black	B01A pin 20 B01C pin 12 M54A pin 28
3		MV	brown/green	M54A pin 42
4	1.5	MV	brown/green	D04 pin 10

Wiring diagrams

• E5010
