A30 Ignition coil

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Starting - recharging › A30 Ignition coil

Connectors and pin-outsA30 Ignition coil

A30 Ignition coil

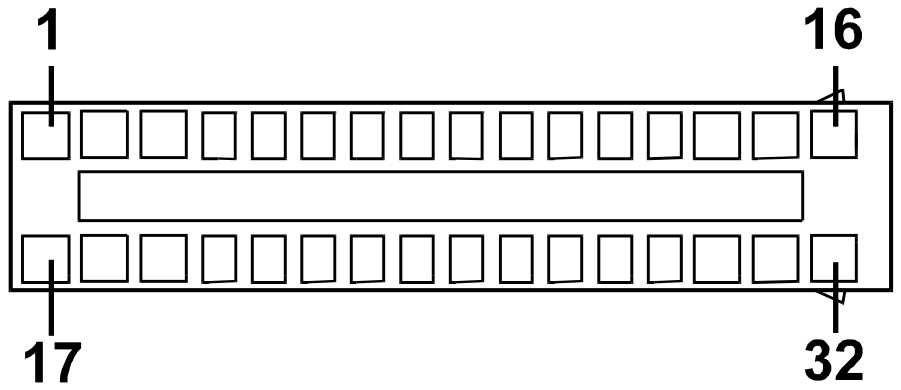

Connector A30A – engine harness (black)

Pin	mm²	Colour		To
1	1.0	G	yellow	M10B pin 16
2	1.0	V	green	D04 pin 1 A30B pin 2 A30C pin 2 A30D pin 2 N70A pin 1 N70B pin 1 N70C pin 1 N70D pin 1

Connector A30B – engine harness (black)

Pin	mm²	Colour		To
1	1.0	V	green	M10B pin 31
2	1.0	V	green	D04 pin 1 A30A pin 2 A30C pin 2 A30D pin 2 N70A pin 1 N70B pin 1 N70C pin 1 N70D pin 1

Connector A30C – engine harness (black)

Pin	mm²	Colour		To
1	1.0	V	green	M10B pin 30
2	1.0	V	green	D04 pin 1 A30A pin 2 A30B pin 2 A30D pin 2 N70A pin 1 N70B pin 1 N70C pin 1 N70D pin 1

Connector A30D – engine harness (black)

Pin	mm²	Colour		To
1	1.0	G	yellow	M10B pin 14
2	1.0	V	green	D04 pin 1 A30A pin 2 A30B pin 2 A30C pin 2 N70A pin 1 N70B pin 1 N70C pin 1 N70D pin 1

Wiring diagrams

• E5030
