WINDOW LIFT/HEATED SEAT CUSHION SWITCHES AND BULBS

86

ELECTRICAL

40

REPAIR

INSTRUMENT ILLUMINATION ELECTRONIC
DIMMER/RHEOSTAT

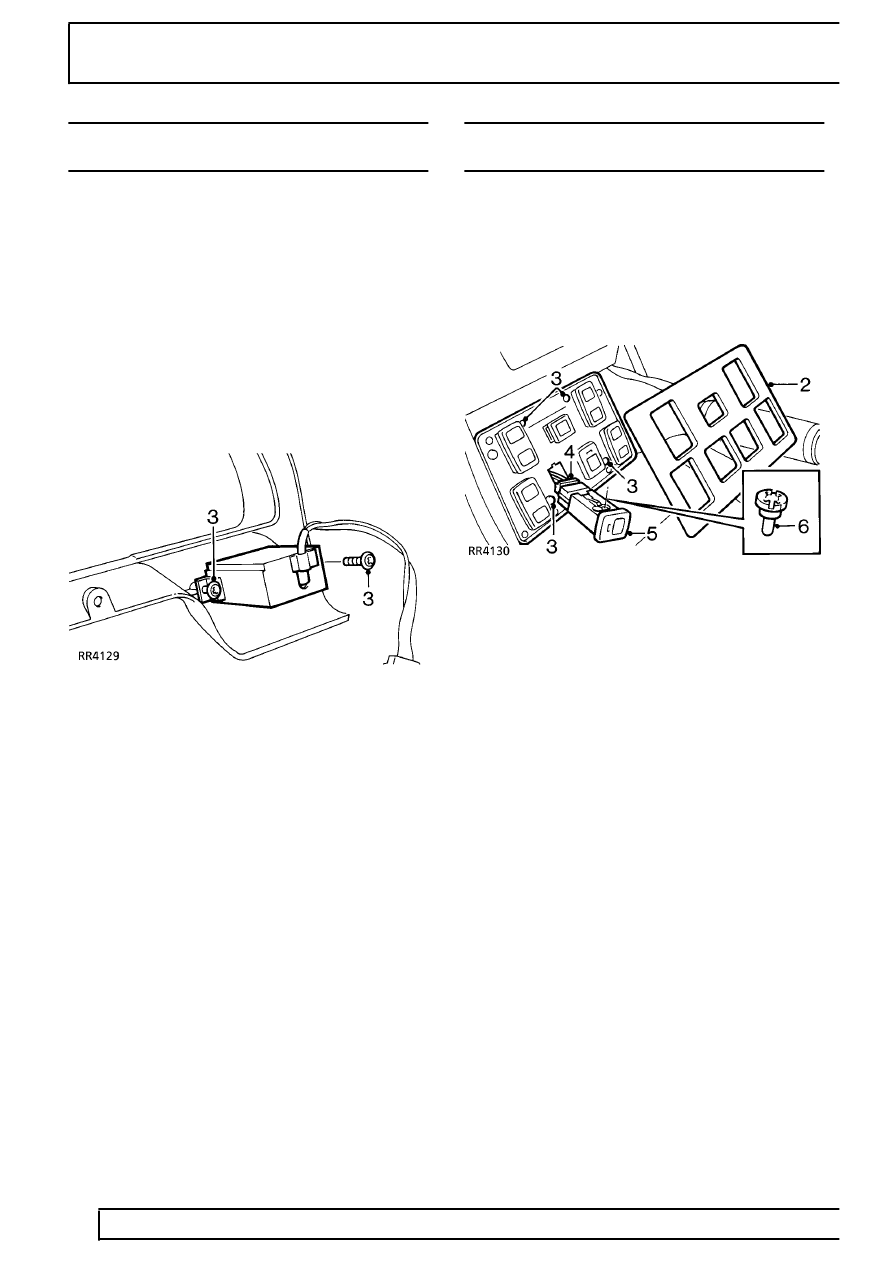

Service repair no - 86.65.07

Electronic dimming control switch is located in
instrument panel finisher. Rotate control to vary
intensity of illumination.

Remove

1. Disconnect the battery negative lead.
2. Remove instrument panel finisher.

See

CHASSIS AND BODY, Repair, Instrument
Panel Finisher

3. Remove 2 screws securing rheostat, remove

rheostat.

Refit

4. Reverse removal procedure.

WINDOW LIFT/HEATED SEAT CUSHION
SWITCHES AND BULBS

Service repair no - 86.25.16 - Switches
Service repair no - 86.45.29 - Bulb

Switch Replacement

1. Disconnect the battery negative lead.

2. Carefully release rear of surround from centre

console.

3. Remove screws, pry window lift switch surround

from glove box.

4. Disconnect multi-plug(s) at rear of switch(es).
5. Apply pressure to rear of switch, push it through

surround.

Bulb replacement

6. Identify bulb to be replaced and remove

appropriate switch.

7. Rotate bulb holder 90

°

and withdraw it from

switch; discard bulb and holder.

Refit

8. Reverse removal procedure.
