REAR COMPARTMENT LOWER TRIM PANELS

CHASSIS AND BODY

15

REPAIR

REAR DOOR CHECK STAY

Service repair no - 76.40.30

Remove

1. Remove the rear door from the vehicle.

See

rear door.

2. Invert the door on a suitable protected area.

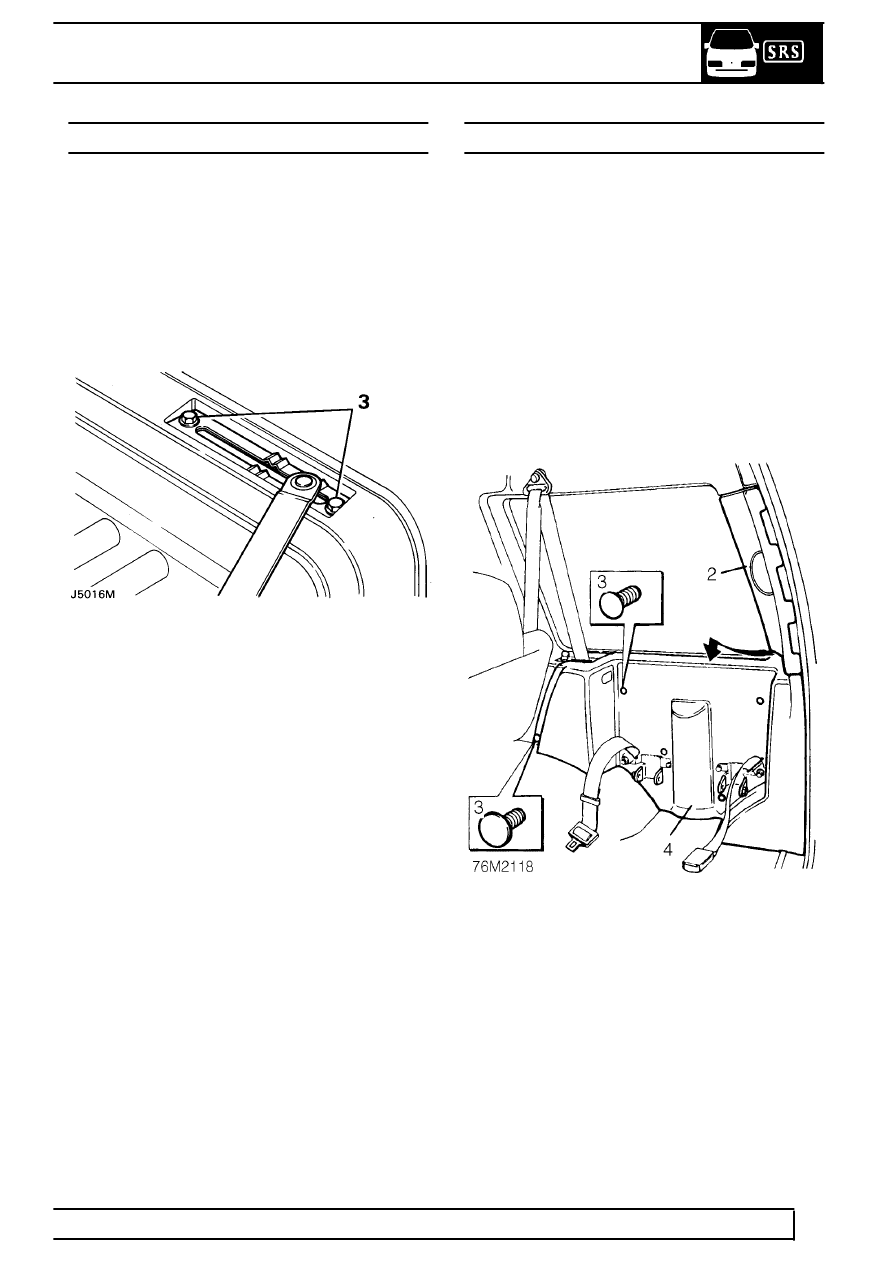

3. Remove the two securing bolts and withdraw the

check stay assembly.

Refit

4. Reverse removal procedure.

REAR COMPARTMENT LOWER TRIM PANELS

Service repair no - 76.13.03

Remove

1. Remove the fold down seat or pocket side panel,

whichever is applicable.

See rear fold down

seats.

2. Remove speaker by releasing screws and

disconnecting Lucars. Withdraw rear quarter trim
panel.

3. Remove the five trim panel retainers.
4. Ease the trim panel from its location, feed the

seat belts through the apertures and withdraw
the panel.

Refit

5. Reverse removal procedure.
